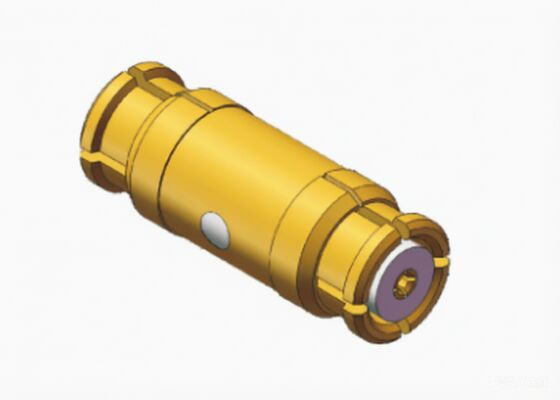

50Ohm SMP Jack to Jack Bullet RF Coaxial Adapters Connector Up To 18GHz
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMP Female To SMP Female Adapter | Other Name: | SMP Jack To Jack Bullet |
|---|---|---|---|
| Center Contact: | Copper Alloy， Gold Plated | Shell: | Copper Alloy， Gold Plated |
| Imdepence: | 50Ohm | Rated Voltage: | 170V |
| DWV: | 500V | Insulation Resistance: | 5000 Ohm |
| Frequency: | DC~18GHz | Temperature Range: | -55℃~+125℃ |
| Dielectric: | PTFE | Samples: | Available，In Stock >30PCS |
| Highlight: | 50Ohm SMP coaxial adapter connector,SMP jack to jack RF adapter,18GHz RF coaxial bullet connector |
||
Product Description:
50Ohm SMP Jack to Jack Bullet RF Coaxial Adapters Connector Up To 18GHz
Engineered for environments where space is at a premium, these miniature adapters deliver a robust interconnect solution without sacrificing performance. Designed to meet the rigorous demands of modern RF systems, they are ideal for applications requiring minimum dimensions and ultra-compact, space-saving designs.
Key Features of RF Coaxial Adapters Connector:
Extended Frequency Range: Suitable for use up to 18 GHz, ensuring reliable signal integrity in high-frequency test environments and communication systems.
Tool-Free Connectivity: Featuring a Push-on design, these adapters allow for quick mating and unmating. Installers can secure connections without the need for threads or wrenches, significantly reducing assembly time and complexity.
Versatile SMP Connector Family: The SMP series offers a comprehensive range of configurations, including straight and right-angle variants. Whether your application requires cable assembly or direct soldering to a PCB, there is a suitable configuration.
Optimized Engagement Options for Every Environment
To ensure reliability across various usage scenarios, users can select from three distinct plug structures tailored to specific mating cycle requirements:
Full Detent: Recommended for permanent or semi-permanent installations where frequent insertion is not required. This option provides the highest retention force.
Limited Detent: Ideal for applications requiring regular maintenance or reconfiguration involving many insertion cycles.
Smooth Bore: Designed for high-density board-to-board assemblies where multiple SMP connectors are mounted in close proximity.
Note on Mechanical Performance: Insertion and extraction forces follow this hierarchy: Full Detent > Limited Detent > Smooth Bore.
Outline Dimension of Straight SMP to SMP Jack to Jack Bullets SMP-KK25 Series:
| Model | L (different length) | Note |
| SMP-KK99 | 9.6mm | Female to Female |
| SMP-KK166 | 10.2mm | Female to Female |
| SMP-KK176 | 7.1mm | Female to Female |
| SMP-KK177 | 7.4mm | Female to Female |
| SMP-KK178 | 8.1mm | Female to Female |
| SMP-KK188 | 10mm | Female to Female |
| SMP-KK189 | 9.7mm | Female to Female |
| SMP-KK192 | 9mm | Female to Female |
| SMP-KK239 | 9.9mm | Female to Female |
| SMP-KK249 | 6.7mm | Female to Female |
Note: If you would like to customize the different length of SMP to SMP Adapters, Bullets. please contact us freely through sales3@xa-elite.com.cn.
Applications:
Xi'an Elite Electronic is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry.
Packing and Shipping:
Packaging:
Package Dimensions: Outer Small Carton with L 26.5*W18.5*H14cm
Shipping:
Shipping Time: 5-7 business days for stocked RF Coaxial Adapters Connector. For the new production, once the goods are ready, we will arrange the shipment as earlier as we can.
