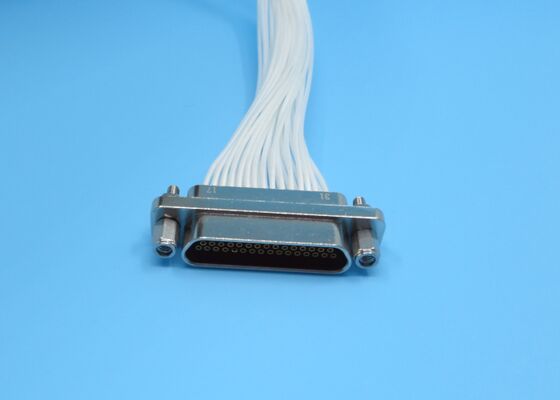

J30J Series Connector Rectangular 51contacts Female Receptacle with Wire for Wireless Communication
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | J30J Series Connectors | Other Name: | Micro D Connectors |
|---|---|---|---|
| Center Conductor: | Copper Alloy, Gold Plating | Outer Conductor: | Aluminum Alloy, Nickle Plating |
| Style: | Female Receptacle | DWV: | 800V |
| Contact Termination: | Crimp | Insulation Resistance: | ≥5000MΩ |
| Contact/Pin: | 51contacts | Insulation Dielectric: | PBT |
| Operating Temp: | -55℃~+125℃ | Storage Temp.: | -55℃~+125℃ |
| Mating Cable: | AFR-250, White Wire 0.10mm2 ~0.15mm2 | Wire Length: | 1000mm，500mm, 300mm, 200mm |
| Customization: | Different Wire Length | ||
| Highlight: | J30J Series rectangular connector 51 contacts,female receptacle connector for wireless communication,J30J Series connector with wire |
||
Product Description:
The J30J series micro‑rectangular connectors are designed for applications demanding ultra‑compact size, lightweight structure, and high reliability. As a high‑density miniature connector built to withstand harsh environments, the J30J series serves as a critical component in the miniaturization and weight optimization of modern electronic systems.
Contact System
Features flexible twist‑pin contacts with a 1.27 mm contact pitch for stable electrical performance.
Available contact configurations: 9, 15, 21, 25, 31, 37, 51, 66, 74, and 100 pins.
Contacts are constructed from gold‑plated copper alloy to deliver low contact resistance and excellent corrosion resistance.
Features flexible twist‑pin contacts with a 1.27 mm contact pitch for stable electrical performance.
Available contact configurations: 9, 15, 21, 25, 31, 37, 51, 66, 74, and 100 pins.
Contacts are constructed from gold‑plated copper alloy to deliver low contact resistance and excellent corrosion resistance.
Housing & Shielding
Housed in rugged aluminum alloy with electroless nickel plating for durability and effective shielding.
Equipped with threaded coupling to ensure a secure, vibration‑resistant connection in demanding operating conditions.
Housed in rugged aluminum alloy with electroless nickel plating for durability and effective shielding.
Equipped with threaded coupling to ensure a secure, vibration‑resistant connection in demanding operating conditions.
Termination Options
Supports multiple termination styles, including solder termination, right‑angle / straight PCB mounting, and crimp‑to‑wire assembly.
Supports multiple termination styles, including solder termination, right‑angle / straight PCB mounting, and crimp‑to‑wire assembly.
Technical Data:
Outline Dimension of J30J Series Connector 51 contacts Female Socket:
| Product Model |
J30J-51ZKP-500 ( 51pins, female socket, wire length 500mm) |
||
| Technical | Materials & Finish | ||
| Impedance | / | Center Conductor | Copper Alloy, Gold Plating |
| DWV | 800V | Outer Conductor | Aluminum Alloy, Nickle Plating |
| Insulation Resistance | >5000MΩ | Insulation Dielectric | PBT |
| Temperature | Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃ | ||
Applications:
Our RF connectors serve as the reliable nerve center for aerospace and electronic systems.
Engineered to withstand vibration and extreme temperatures, they ensure zero-loss microwave signal transmission under complex operating conditions—spanning radar, satellite communications, and telemetry & control systems. Addressing the high-density cabling demands of phased array radar and LEO satellites, we deliver lightweight, miniaturized multi-channel interconnection solutions, safeguarding the success of your most critical missions.
Customization:
Customize your J30J Series Connectors with Elite Electronics‘ Product Customization Services:
We also can customize the special pins such as the 12 pins, 24 pins, 35pins, 39 pins, 41 pins, we will arrange the project evaluation by our engineer before the customization.
Packing and Shipping:
- Packaging:
The J30J Series Connectors is securely packed in a durable cardboard box to prevent damage during shipping.
- Shipping:
We use fedex, DHL or air shipment to ensure safe and timely delivery of your J30J Series Connectors.
