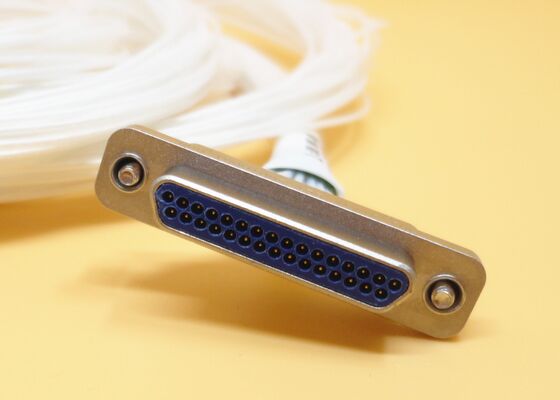

J30J Series Connector 31contacts Male Plug with Wire Length 1000mm for Sensor System
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | J30J Series Connectors | Other Name: | Micro D Connectors |
|---|---|---|---|
| Center Conductor: | Copper Alloy, Gold Plating | Outer Conductor: | Aluminum Alloy, Nickle Plating |
| DWV: | 800V | Contact Termination: | Crimp |
| Insulation Resistance: | ≥5000MΩ | Contact/Pin: | 31contacts |
| Insulation Dielectric: | PBT | Operating Temp: | -55℃~+125℃ |
| Storage Temp.: | -55℃~+125℃ | Mating Cable: | AFR-250, White Wire 0.10mm2 ~0.15mm2 |
| Wire Length: | 1000mm，500mm, 300mm, 200mm, | Customization: | Different Wire Length |
| Highlight: | J30J Series male plug connector,31 contacts sensor system connector,1000mm wire length J30J connector |
||
Product Description:
The J30J series of micro-rectangular connectors is widely used in fields with stringent requirements for size, weight, and reliability. It is a high-density, harsh environment-resistant miniature signal connector. This series is a key component in the miniaturization and weight reduction of modern electronic equipment.
Contact System:
Adopts flexible twisted pin contacts, with a contact pitch of 1.27 mm.
Contacts: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100pin
Contacts are made of gold-plated copper alloy to ensure low contact resistance and corrosion resistance.
Adopts flexible twisted pin contacts, with a contact pitch of 1.27 mm.
Contacts: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100pin
Contacts are made of gold-plated copper alloy to ensure low contact resistance and corrosion resistance.
Housing & Shielding:
Aluminum alloy housing with electroless nickel plating; threaded locking ensures secure connection under vibration.
Aluminum alloy housing with electroless nickel plating; threaded locking ensures secure connection under vibration.
Termination Styles:
Supports wire solder, right-angle / straight PCB mount, and crimp with wire.
Supports wire solder, right-angle / straight PCB mount, and crimp with wire.
Technical Data:
Outline Dimension of J30J Series Connector 31 contacts Male Plug:
| Product Model | J30J-31TJL-1000 (31pins, male plug, wire length 1000mm) | ||
| Technical | Materials & Finish | ||
| Impedance | / | Center Conductor | Copper Alloy, Gold Plating |
| DWV | 800V | Outer Conductor | Aluminum Alloy, Nickle Plating |
| Insulation Resistance | >5000MΩ | Insulation Dielectric | PBT |
| Temperature | Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃ | ||
Applications:
Aerospace: Radar system, satcom, and telemetry & control systems
Electronics: Communication electronics, vehicle-mounted equipment and systems
High-end Industry: Medical equipment, testing instruments, downhole detection equipment
Microwave & RF Equipment: Miniature transceiver modules, PCB-to-PCB / PCB-to-cable interconnection
Customization:
Customize your J30J Series Connectors with Elite Electronics‘ Product Customization Services:
We also can customize the special pins such as the 12 pins, 24 pins, 35pins, 39 pins, 41 pins, we will arrange the project evaluation by our engineer before the customization.
