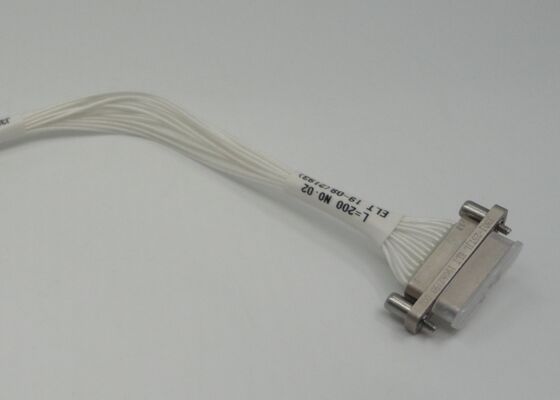

J30J Series Connector 25contacts Male Plug with Different Wire Length for Communication Device

Large Image : J30J Series Connector 25contacts Male Plug with Different Wire Length for Communication Device Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	ISO Certificates
Model Number:	J30J-25TJL-200

Payment & Shipping Terms:

Minimum Order Quantity:	In stock
Price:	Depending on the quantity
Packaging Details:	Carton
Delivery Time:	5-10 working days for stocked quantity
Payment Terms:	T/T or LC
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Product Name:	J30J Series Connectors	Other Name:	Micro D Connectors
Center Conductor:	Copper Alloy, Gold Plating	Outer Conductor:	Aluminum Alloy, Nickle Plating
DWV:	800V	Contact Termination:	Crimp
Insulation Resistance:	≥5000MΩ	Contact/Pin:	25contacts
Insulation Dielectric:	PBT	Operating Temp:	-55℃~+125℃
Storage Temp.:	-55℃~+125℃	Mating Cable:	AFR-250, White Wire 0.10mm2 ~0.15mm2
Wire Length:	200mm, 300mm, 500mm, 1000mm...	Customization:	Different Wire Length
Highlight:	J30J Series Connector male plug , J30J Series Connector 25 contacts , J30J Series Connector communication device

Product Description:

The J30J series of micro-rectangular connectors is widely used in fields with stringent requirements for size, weight, and reliability. Renowned for its high density, high reliability, and strong Electromagnetic Interference (EMI) resistance, this series is a key component in the miniaturization and weight reduction of modern electronic equipment.

Features:

High-Density Design: Featuring a 1.27mm grid pitch, it enables multi-pin connections within an extremely small footprint, saving valuable PCB space.
Superior Contact Performance: The design ensures low contact resistance, smooth mating and unmating, and excellent contact alignment, significantly enhancing connection stability and service life.
Robust Shielding & Durability: The shell, typically made of aluminum alloy or stainless steel, provides excellent 360° electromagnetic shielding to effectively prevent signal interference. The contacts are usually gold-plated, offering corrosion and oxidation resistance to ensure stable signal transmission even in harsh environments (such as extreme temperatures and vibration).

Contact Arrangements:

J30J Series Connector 25contacts Male Plug with Different Wire Length for Communication Device 0

Technical Data:

Outline Dimension of J30J Series Connector 25 contacts Male Plug:

Product Model	J30J-25TJL-200 (25pins, male plug, wire length 200mm)
Technical		Materials & Finish
Impedance	/	Center Conductor	Copper Alloy, Gold Plating
DWV	800V	Outer Conductor	Aluminum Alloy, Nickle Plating
Insulation Resistance	>5000MΩ	Insulation Dielectric	PBT
Temperature	Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃

J30J Series Connector 25contacts Male Plug with Different Wire Length for Communication Device 1

Applications:

Aerospace & Aviation: Used in radar systems, control systems, and onboard equipment.
Industrial Automation: Applied in high-precision industrial control boards and robot controllers.
Telecommunications: Suitable for base station backplane connections or core switching modules.
Medical Electronics: Designed for portable devices or high-precision medical imaging equipment.

J30J Series Connector 25contacts Male Plug with Different Wire Length for Communication Device 2

Customization:

Customize your J30J Series Connector with Elite Electronic 's Product Customization Services:

We also can customize the special pins such as the 12 pins, 24 pins, 35pins, 39 pins, 41 pins, we will arrange the project evaluation by our engineer before the customization.
