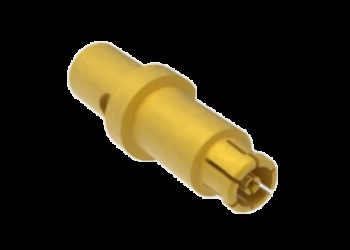

50Ω SMPM Male RF Connector 0.3MHz-40GHz 170V for Cable CXN3506

Large Image : 50Ω SMPM Male RF Connector 0.3MHz-40GHz 170V for Cable CXN3506 Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	ISO9001, IS014001
Model Number:	SSMP-K506-32
Document:	Catalog SSMP（SMPM) for Ca...25.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	MOQ 100 pieces
Price:	The price depend on the quantity
Packaging Details:	100pcs/bag or plastic bottle;100pcs/carton as requirement
Delivery Time:	8-12 weeks for new production
Payment Terms:	T/T,L/C,D/P
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Product Name:	SMPM Male Cable Connectors	Model:	SSMP-K506-32
Frequency Range:	0.3MHz-40GHz	Impedance:	50Ω
Rated Voltage:	170v	DWV:	500V
Insulation Resistance:	≥5000MΩ	Center Conductor:	Copper Alloy, Gold Plated
Outer Conductor:	Copper Alloy, Gold Plated	Samples:	Available，In Stock
Highlight:	50Ω SMPM male RF connector , SMPM RF connector 0.3MHz-40GHz , SMPM cable connector 170V

50Ω SMPM Male RF Coaxial Connector 0.3MHz-40GHz 170V for Cable CXN3506

The SMPM coaxial connector features a compact design engineered for small package requirements, making it ideal for high data rate applications. Its superior shielding reduces signal interference, ensuring optimal transmission at elevated speeds.

When used with an SMPM female-to-female adapter, this connector system provides reliable board-to-board connections while compensating for radial and axial misalignments during installation.

Product Specifications

Item	Value
Product Name	SMPM Male Cable Connector
Model	SSMP-K506-32
Frequency Range	0.3MHz-40GHz
Impedance	50Ω
Rated Voltage	170V
DWV	500V
Insulation Resistance	≥5000MΩ
Center Conductor	Copper Alloy, Gold Plated
Outer Conductor	Copper Alloy, Gold Plated
Mating Cable	CXN3506

Product Outline Dimensions (Unit: mm)

Applications

Microwave communication systems
Measurement equipment
Aerospace applications
Radar systems
Electronics fields

Elite Electronic manufactures SMPM connectors using premium materials and rigorous quality control to ensure exceptional durability and reliability in extreme environments.

Packaging & Shipping

Each SMPM connector is carefully packaged in protective cartons to ensure safe transit. We use reliable courier services with tracking numbers provided for all shipments.
