Glass Insulator Supper Micro SMP/SMPS 0.04GHz-40GHz Frequency Range for Board to Board Connect

Product Introduction:

The Hermetically Sealed CSMP Male Connector stands out as a premier product within the supper minisize SMP connector category, delivering exceptional performance and reliability. Engineered for critical applications that demand high precision and durability, this supper miniature SMP connector is the preferred choice for professionals across various industries.

With Insulation Resistance of ≥2000MΩ, this connector ensures robust electrical insulation, effectively preventing leakage and maintaining signal integrity even in the most challenging environments. This feature makes it ideal for high-stakes applications where reliability is non-negotiable.

The outer conductor of the Hermetically Sealed CSMP Male Connector is made from Kovar Alloy, renowned for its excellent thermal stability and corrosion resistance. Additionally, the outer conductor is Gold Plated, which enhances conductivity and ensures optimal signal transmission quality.

The connector is equipped with a Green Glass Insulator, which not only provides reliable electrical insulation. The use of glass as the insulating material contributes to the connector's robustness and longevity, making it a dependable choice for long-term use.

Operating at an Impedance of 50Ω, the Hermetically Sealed CSMP Male Connector is designed to deliver consistent and stable performance across various applications. Its impedance matching capability is crucial for minimizing signal reflections and maximizing signal transfer efficiency, ensuring reliable communication in critical systems.

In summary, the Hermetically Sealed CSMP Male Connector is a high-performance supper miniature SMP connector offering high insulation resistance, durable Kovar Alloy construction with Gold Plating, a reliable Green Glass insulator, and precise 50Ω impedance. It is the ideal choice for professionals seeking a compact yet high-performance connectivity solution.

Board to Board Solution:

CSMP Male Connector (Full detent) + CSMP Female Adapter + CSMP Male Connector (Smooth bore)

Technical Parameters:

Outline Size of CSMP(M)-JHD38-S :

Applications:

The Hermetically Sealed CSMP Connector is versatile and can be used in:

• Aerospace
• Telecommunications
• Aviation
• Navigation
• Satelite
• Radar
• Industrial & electronics

Its miniature size, wide frequency range, and hermetic sealing make it a dependable choice for demanding environments.

Customization:

Product customization services are available for the CSMP RF Connector, supper minitype SMP, supper mini-size SMP, and supper minisize SMP.

MOQ: 200 pcs

Packing and Shipping:

• Product Packaging:

This CSMP RF Connector is carefully packaged to ensure safe delivery to your doorstep.

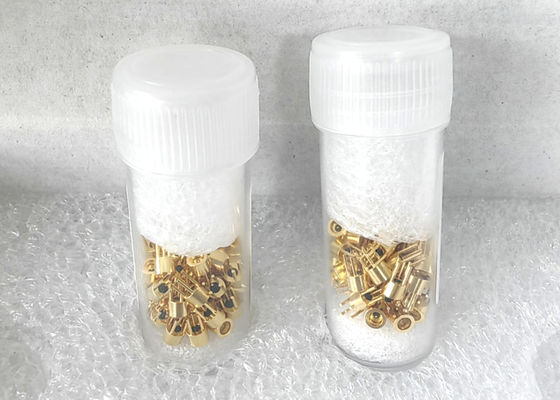

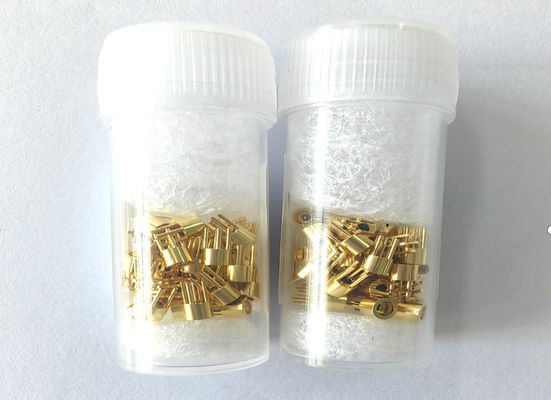

Package: 50pcs/ plastic bottle or 100 pcs/plastic bottle

Size of Outer Carton: 21.5*15.5*12cm (0.040 CBM)

Note: The Outer Carton can hold Two Small Carton

• Shipping:

Orders for the Stocked RF Connector are typically arrange the shipping within 5-7 business days.  Once your order is shipped, you will receive a tracking number to track the delivery status of your package.
