Right Angle SSMA / Mini SMA Female / Jack RF Coax Connector 4 Leg Through Hole Solder PCB ​Up to 18GHz

Right Angle SSMA / Mini SMA Female / Jack RF Coax Connector 4 Leg Through Hole Solder PCB ​Up to 18GHz
Right Angle SSMA / Mini SMA Female / Jack RF Coax Connector 4 Leg Through Hole Solder PCB ​Up to 18GHz
video play

Large Image :  Right Angle SSMA / Mini SMA Female / Jack RF Coax Connector 4 Leg Through Hole Solder PCB ​Up to 18GHz Get Best Price

Product Details:
Place of Origin: Xi'an, China
Brand Name: ELT
Certification: ISO9001, IS014001
Model Number: SSMA-KWHD
Payment & Shipping Terms:
Minimum Order Quantity: MOQ 50 pieces
Price: The more quantity, the cheaper the price will be
Packaging Details: 1pcs/plastic bag;100pcs/carton
Delivery Time: 8-12 weeks for new production
Payment Terms: T/T,L/C,D/P
Supply Ability: As requirements
Contact Now
Detailed Product Description

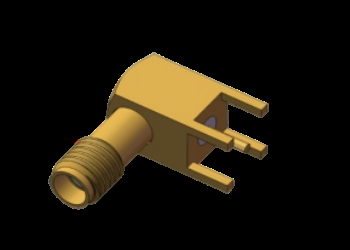

Product Name: Right Angle SSMA Female Microstrip Connector Model: SSMA-KWHD
Frequency Range: 0.3MHz-18GHz Impedance: 50Ω
Rated Voltage: 250v DWV: 750V
Insulation Resistance: ≥5000MΩ Center Conductor: Copper Alloy, Gold Plated
Outer Conductor: Copper Alloy, Gold Plated Mount Method: 4 Leg Though Hole Solder
Insulators: PTFE
Highlight:

Solder PCB SSMA Connector

,

Mini SMA RF Coax Connector

,

Right Angle SSMA RF Coax Connector

Right Angle SSMA / Mini SMA Female RF Coaxial Connector 4 Leg Through Hole Solder PCB Up to 18GHz
Product Specifications
Items Value
Product Name Right Angle SSMA Female PCB Mount Connector
Model
SSMA-KWHD
Frequency Range 0.3MHz-18GHz
Impedance 50Ω
Rated Voltage 250v
DWV 750V
Insulation Resistance ≥5000MΩ
Center Conductor Copper Alloy, Gold Plated
Outer Conductor Copper Alloy, Gold Plated
Mount Method 4 Leg Through Hole Solder
Insulators PTFE
Product Overview
The SSMA series RF coaxial connectors are compact versions of the SMA interface standard, approximately 70% the size of traditional SMA connectors. SSMA connectors we have structure of right angle flange mount, straight flange mount,  right angle through hole PCB solder,  straight  through hole PCB soder, bulkhead screws connect. These connectors feature:
  • Compact size with wide frequency bandwidth
  • Superior mechanical and electrical performance
  • High reliability in demanding applications
  • Threaded standard (10-36UNF-2)
  • Characteristic impedance of 50Ω
  • Frequency operation up to 30GHz
Interface Dimensions
Right Angle SSMA / Mini SMA Female / Jack RF Coax Connector 4 Leg Through Hole Solder PCB ​Up to 18GHz 0
SSMA / Mini SMA RF Coaxial Connector 4 Leg Through Hole Solder PCB Dimensions
Outline dimensions for the SSMA-KWHD (Unit: mm).

Right Angle SSMA / Mini SMA Female / Jack RF Coax Connector 4 Leg Through Hole Solder PCB ​Up to 18GHz 1





Other Model SSMA 4 Hole Flange Mount RF Coaxial Connector with 4 leg through hole mount

Right Angle SSMA / Mini SMA Female / Jack RF Coax Connector 4 Leg Through Hole Solder PCB ​Up to 18GHz 2

Applications
Ideal for high-precision microwave signal transmission in:
  • Microwave communication systems
  • Measurement equipment
  • Aerospace applications
  • Radar systems
  • Electronics fields
Our products use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.
Right Angle SSMA / Mini SMA Female / Jack RF Coax Connector 4 Leg Through Hole Solder PCB ​Up to 18GHz 3
Packaging & Shipping
Packaging: Each SSMA flange mount connector is carefully packaged in protective cartons to ensure safe transit. Right Angle SSMA / Mini SMA Female / Jack RF Coax Connector 4 Leg Through Hole Solder PCB ​Up to 18GHz 4 Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Note: For other similar flange mount connector models, please check our catalog. While some models are in stock, all can be produced quickly for the model on catalog.
