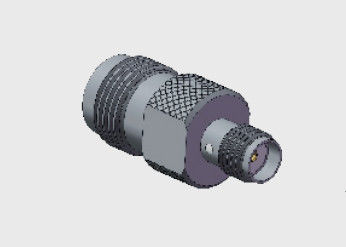

Harsh Environment 50 Ohm TNC Female / Jack To SMA Female / Jack RF Coaxial Adapter With PTFE Insulation Resistance Of 5000Ohm

Product Description:

The Elite Electronic TNC series connector is designed for small to medium power applications, featuring a robust threaded connection structure. With an interface size similar to the BNC series, it offers strong anti-vibration properties, high reliability, and superior mechanical and electrical performance.

Key Features:

• High Frequency Capability: Operates up to 18GHz, surpassing the standard 11GHz.
• Interchangeable Design: Compatible with international connectors of the same series.
• Wide Application: Ideal for aviation, aerospace, radar, microwave communication, and digital communication fields.
• Durability: Engineered to withstand harsh environmental conditions, ensuring stable transmission performance under extreme conditions.

This connector meets the demands of reliable communication and radar systems, providing exceptional performance in critical applications.

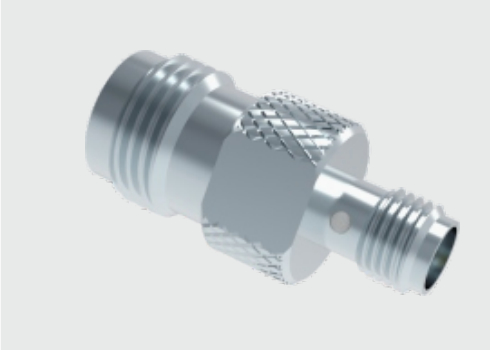

Outline Dimension of  TNC Female to SMA Female Adapters TNC/SMA-KK:


Other TNC to SMA Female to Female Model for your reference as following


Outline Dimension of TNC Jack to SMA Jack 4 Hole Flange Mount Adapters TNC/SMA-KFK:

Outline Dimension of TNC to SMA Female to Female Hole Flange Mount Adapters TNC/SMA-KFK1:

Outline Dimension of TNC to SMA Jack to Jack 4 Hole Flange Mount Adapters TNC/SMA-KFK:



Applications:

TNC adapters is widely used in the fields of aviation,aerospace, radar, microwave communication and digital communication.

Packing and Shipping:

Packaging:
The TNC female to SMA female is carefully packaged in a carton to ensure safe transportation. The connector is secured in place with protective foam padding to prevent any damage during shipping. The box is labeled with the product name and specifications for easy identification.


Shipping:
We offer fast and reliable shipping for the TNC Jack to SMA Jack adapters. We will ship the stocked connectors within 5-7 business days. After shipping, you will receive a tracking number of your shipment.
