7.5GHz~18GHz WRD650 To SMA Male Right Angle Waveguide To Coax Adapter SMA/WRD750-JF

7.5GHz~18GHz WRD750 To SMA Male Right Angle Waveguide To Coax Adapter

The frequency of wave-guide to coax adapters processed by Elite Electronic (ELT) cover 5.4GHz-110GHz. With high reliability, small size and excellent performance, it is widely used in microwave measurement and millimeter wave equipment. The waveguide has standard rectangular and double-ridge waveguides, and non-standard waveguides can be customized according to user requirements. The coaxial end connection interface includes N, TNC, SMA, SMP, SSMP, 3.5, K (2.92), 2.4, 1.85, 1.0 and microstrip. Waveguide to coax adapters are divided into two types: end Launch and right angle launch from interface orientation. Among them, the RA launch type can also be used as a high-power structure.



Advantages:

-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.

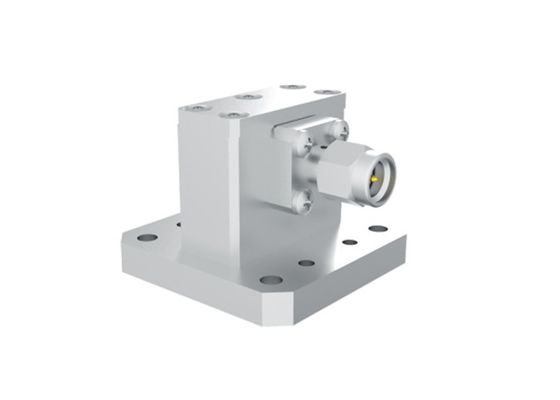

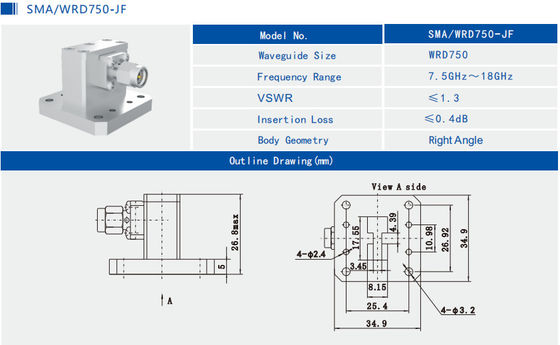

Outline Drawing and Pictures of WRD750 to SMA Male Waveguide to Coax Adapter SMA/WRD750-JF:



Related WRD Waveguide to Coax Adapters of Elite Electronic.

Model Number	Description	Note
N/WRD500-KF1	WRD500 to N Type female end launch adapters	6GHz~18GHz
K/WRD180-KF	WRD180 to K2.92mm female right angle adapters	18GHz~40GHz
SMA/WRD650-JF	WRD650 to SMA male right angle adapters	6GHz~18GHz
Custom Type	Customized sizes are acceptable







Cross-references of waveguide Standards
