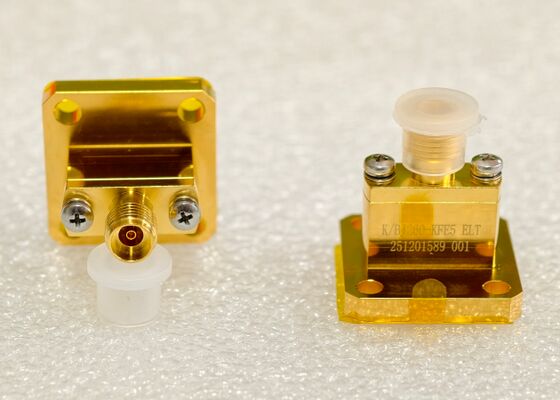

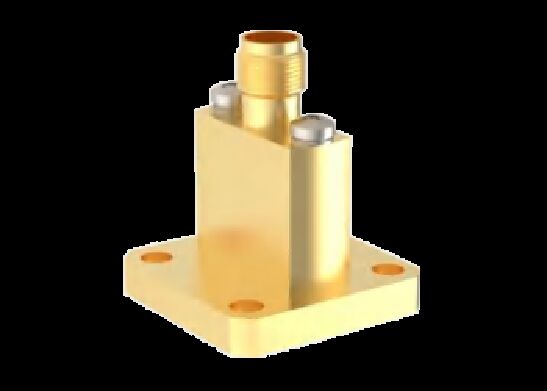

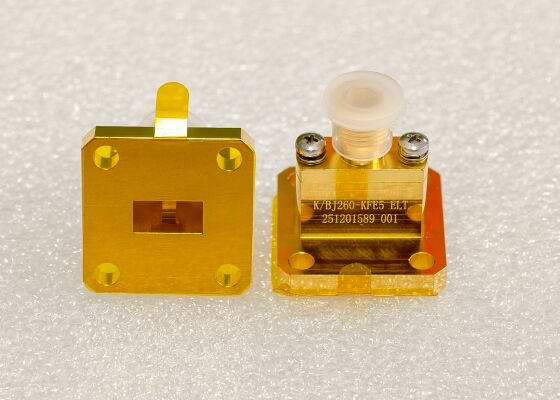

Waveguide to Coaxial Adapter with Waveguide Port as WR90，WR75, WR60, WR51, WR42, WR34, WR28, WR22, WR19, WR15, WR12, WR10, WRD750, WRD650, WRD500, WRD180 from 6.5GHZ to 145GHz

• Outline Drawing

• Other Waveguide to Coaxial Adapter

We also have other waveguide to coaxial adapter such as waveguide to sma adapter,  waveguide to N type adapter ,  waveguide to 2.4mm adapter,  waveguide to 1.85mm adapter,  waveguide to 1.0mm adapter, waveguide to 0.8mm adapter. Please contact us freely if you need other models.

• Cross-references of Waveguide Standards -WR Series & BJ Series

• Application

  1. Aerospace & Radar Systems

  • Radar Systems: waveguide to coaxial adapter are used to connect the waveguide feed network at the antenna end with the coaxial Transmit/Receive (T/R) modules at the backend. They must guarantee signal phase consistency, especially in high-frequency bands (such as X-band and Ku-band);
  • Electronic Jamming Systems: Used in signal transmit and receive chains, requiring extremely low Voltage Standing Wave Ratio (VSWR) to ensure signal purity;
  • Telemetry Systems: In high-vibration and high-impact flight environments, right-angle or ruggedized transitions provide reliable electrical connections.

  2. Satellite Communications (Satcom)

  • Ground Station Tx/Rx: Waveguide to coaxial adapter connects the waveguide output of parabolic antennas with the coaxial inputs of Low Noise Amplifiers (LNA) or Power Amplifiers (PA).
  • Satellite Payload Testing: During ground verification of satellite payloads, high-performance transitions are used to simulate signal transmission in a space environment, ensuring test accuracy. Inter-Satellite Links: Within satellites, compact waveguide-to-coaxial structures are often used to save space and reduce weight.

  3. Test & Measurement

  • Antenna Testing: Connects waveguide antennas to Vector Network Analyzers (VNA). Especially in the millimeter-wave band (26.5GHz–110GHz), high-precision transitions (such as 2.4mm or 2.92mm connectors) are required. Anechoic Chamber Testing: Transitions are used to route signals from waveguide transmission lines into coaxial test equipment within EMC chambers. Automated Test Equipment (ATE): Right-angle adapters are often used in space-constrained test fixtures to optimize layout.

  4. Wireless Communications (5G/6G & Microwave Relay)

  • 5G/6G Millimeter-Wave R&D: Used in base station prototyping and testing to connect millimeter-wave chips/modules with test equipment. Point-to-Point Microwave Communication: Used for signal coupling and monitoring in long-haul microwave transmission links.

  5. Industrial, Medical & Scientific Research

  • Industrial Microwave: Power monitoring in microwave heating and drying equipment.
  • Medical Microwave: Signal transmission in microwave physiotherapy and tumor hyperthermia equipment.
  • Large-Scale Scientific Facilities: Used in particle accelerators and radio telescopes (e.g., FAST) for high-power, low-noise signal transmission.

• Packing and Shipping

Our Waveguide to coaxial adapters are carefully packaged to ensure maximum protection during transit. Each connector is individually wrapped in anti-static material and placed in a sturdy, cushioned box to prevent any damage from shocks or vibrations.

The packaging is clearly labeled with product information, including part numbers and specifications, to facilitate easy identification and inventory management.

• RFQ:

Q1: Are you trading company or manufacturer ?
A: We are manufacturer with over 23+ years experience on RF/Microwave Interconnect Components .

Q2: What products can you provide currently?
A: RF connectors, adapters, cable assemblies, waveguide to coaxial adapter, waveguide products, glass-to-metal hermetic connectors, micro D-sub, microwave rotary joints and other microwave components.

Q3: Is free sample available?
A: Yes, if have stock, free sample is available with freight collected.

Q4: Can your company accept customize?
A: ODM is welcomed. With more than 23+ years experience in ODM, Elite Electronics can assist in design, product development, research & development and integration of your interconnect products.

Q5: What are the Payment Terms ?
A: We can accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T), etc.

Q6: What is the lead time?
A: 5-7 working days for sample orders, 4-12 weeks for mass production orders (based on different quantities, ODM , etc.)

Q7: How will you deliver goods to me?
A: Generally, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly but with the lowest freight. Meanwhile, ship by air and by sea is also available.

Q8: How long do I need to wait before my goods arrive?
A: 5-8 workdays for air transportation, 3-8 workdays for international express.

Q9: How is your waveguide to coaxial adapter quality?
A: As the high-quality suppliers of many national high-tech projects, providing excellent products is our way of development. We have a strong quality control team and very strict process to guarantee our quality according to different quality grade standard.
