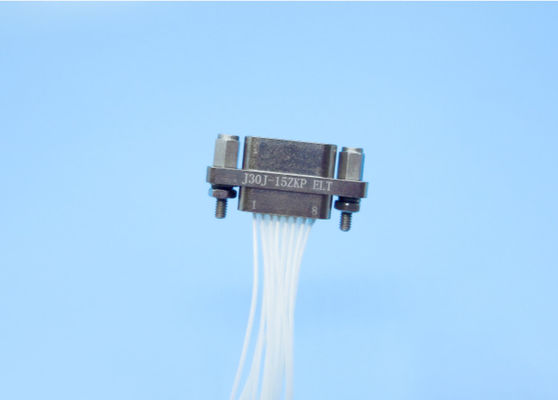

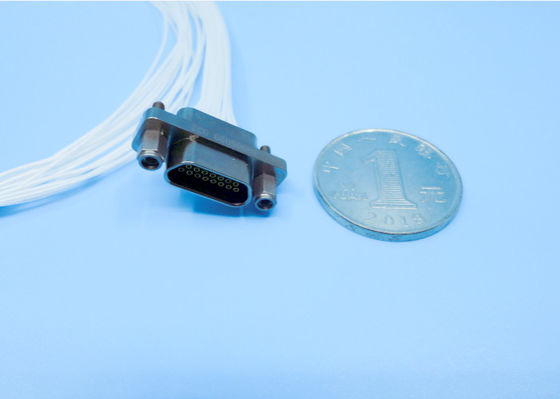

Crimping Contact J30J Rectangular Micro D Connectors Female Socket Receptacle with Wire Length 200mm, 300mm, 50cm, 100cm

Product Description:

The J30J Series Connector is a high-quality Micro D Connector with Clamp designed for various applications that require reliable electrical connections in demanding environments. This connector is specifically engineered to meet the needs of modern electronic systems, offering exceptional performance and durability.

Features:

The ELT J30J-15ZKP-200 connector boasts a DWV of 800V, ensuring reliable insulation and electrical performance.

Designed to work with cables such as AFR-250 and white wires ranging from 0.1 to 0.15mm2, this connector guarantees seamless integration with various cable types. With an insulation resistance of ≥5000MΩ, the J30J-15ZKP-200 connector ensures safe and reliable operation.

The connector's 15-pin contact/pin configuration allows for the transmission of multiple signals or power connections, making it suitable for applications requiring complex electrical setups or data transfer requirements. The use of high-quality PBT insulation dielectric material enhances the connector's overall reliability and ensures long-term performance in a variety of operating conditions.

With an operating temperature range of -55℃ to +125℃, the J30J Series Connector is capable of withstanding extreme environmental conditions, making it suitable for use in harsh industrial settings or outdoor installations. Its insulation resistance of ≥5000MΩ ensures reliable performance and minimizes the risk of electrical failures due to poor insulation properties.

Whether used in aerospace, avation, navation, industrial, satalite, radar, or electronics applications, the J30J Series Connector provides a robust and dependable solution for connecting electronic devices and systems. Its compact design and secure clamp mechanism make it easy to install and maintain, while its superior electrical properties ensure consistent and stable connectivity over time.

Overall, the J30J Series Connector is a versatile and reliable choice for applications that demand high-performance connectivity solutions. With its durable construction, wide operating temperature range, and advanced insulation properties, this connector is designed to meet the needs of modern electronic systems and provide a secure and stable connection for critical operations.

Technical Parameters:

Outline Dimension of J30J Micro-D Female Socket/Receptalce with wire length 200mm (Unit mm):

Applications:

Xi'an Elite Electronic is a reliable manufacturer of J30J Micro D Male Plug/ Female Socket for over 22 years, serving

• aerospace,
• aviation,
• navigation,
• satellite,
• radar,
• communications,
• electronics industry

Customization:

Product Customization Services for the J30J Series Micro D Plug/ Socket:

Customization Options: J30J Micro D for Soldering, Crimping ( wire length 200mm, 300mm, 500mm, 1000mm ), PCB

Elite Electronic can customize the J30J with different contacts such as 12 contacts, 24contacts, 35contacts, 39 contacts, 41contacts

Packing and Shipping:

Packaging and Shipping

The J30J Series Micro D Connector is carefully packaged to ensure safe delivery to our customers. Each connector is individually wrapped in protective material to prevent scratching or damage during transit.

For shipping, we use trusted carriers to deliver your order promptly and securely. Our packaging is designed to withstand the rigors of transportation, so you can be confident that your J30J Series Micro D Connector will arrive in perfect condition.
