N Female Brass Pin Flange Mount RF Connector with Microstrip

Large Image : N Female Brass Pin Flange Mount RF Connector with Microstrip Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	N-KFD471

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1,000,000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	N Type RF Coaxial Cable Conector	Plating:	Nickel Plated
Impedance:	50 Ohm	Frequency Range:	DC~11GHz
Cable Type:	.141, SFT-50-3-1	Gender:	Female
Material:	Brass

N Female Brass Pin Flange Mount RF Connector with Microstrip

N type connectors are coaxial connectors with threaded coupling, known for their excellent anti-vibration capabilities and electrical performance. They typically support frequencies up to 11 GHz and are compatible with various types of RF cables. These connectors are commonly used in applications such as aviation, aerospace, radar, wireless, medical, microwave, and digital communications, as well as test and measurement instruments. We offer customization services for various type-N connectors and adapters to meet the specific requirements of our customers, including straight or right-angle configurations, flange mount or bulkhead mount options.

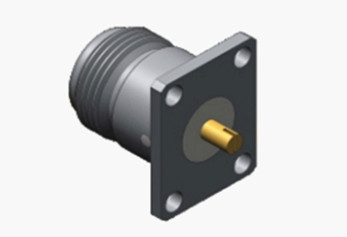

N Female Brass Pin Flange Mount RF Connector with Microstrip 0

Specification
Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~11GHz(Max.18GHz)
Rated Voltage	1000VRMS*(Max.Sea Level)
Dielectrics Voltage-resistance	1500VRMS*(Max.Sea Level)
Insulation Resistance	≥5000MΩ
Center Resistance	Outer conductor	≤0.5mΩ
	Center conductor	≤1.5mΩ
VSWR	≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Brass, Gold plated
	Female	Phosphor Bronze, Gold plated
Resilient Contact	Phosphor Bronze	Nickel Plated Passivated
Shell / Housing	Brass Stainless steel	Gold plated Passivation
Cable Clamp	Brass	Nickel Plated
Insulator	PTFE
Gasket	Silicone Rubber
Durability	500 Cycles

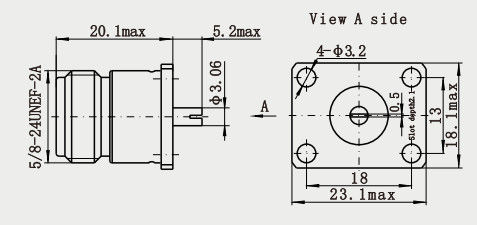

Outline Drawing(mm) of N Female Brass Pin Flange Mount RF Connector with Microstrip

N Female Brass Pin Flange Mount RF Connector with Microstrip 1

Features:

1. The use of high-quality materials and precision manufacturing process produces extremely low loss during signal transmission, which helps to improve the efficiency and quality of signal transmission.
2. After special treatment and testing, it can work stably under harsh environmental conditions (such as high temperature, low temperature, humidity, etc.) and has a long service life.

Applications:

1. Good environmental adaptability: After special treatment and testing, N type microstrip connectors are able to work stably under harsh environmental conditions (such as high temperature, low temperature, humidity, etc.) and have a long service life, which makes them suitable for use outdoors and in a variety of complex environments.

2. Versatile compatibility: The N type microstrip connector is compatible with many types of cables, including semi-rigid cables and flexible cables, etc., providing a wider range of applicability. It also complies with international standards (e.g., IEC and IEEE) for easy interchangeability and integration with other equipment.
