N Female 4-hole Flange RF Coaxial Connector with Microstrip
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Cable Conector | Plating: | Nickel Plated |
|---|---|---|---|
| Impedance: | 50 Ohm | Frequency Range: | DC~11GHz |
| Cable Type: | .141, SFT-50-3-1 | Gender: | Female |
| Material: | Brass |

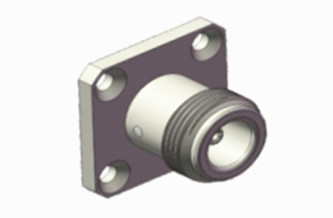

N Female 4-hole Flange RF Coaxial Connector with Microstrip
N type connectors are threaded coupling coaxial connectors, which possess excellent anti-vibration capability and electrical characteristics. Their typical frequency range is up to 11 GHz. These connectors are suitable for various types of RF cables and are commonly used in aviation, aerospace, radar, wireless, medical, microwave and digital communications, as well as test and measurement instruments. We provide customization services for different types of N connectors and adapters according to customers' specific requirements, including straight or right angle, flange mount or bulkhead mount options.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

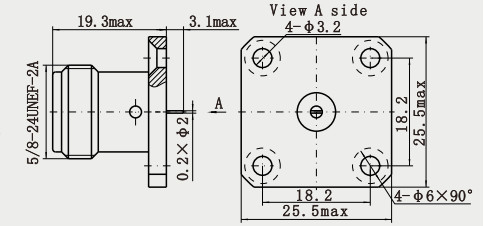

Outline Drawing(mm) of N Female 4-hole Flange RF Coaxial Connector with Microstrip
Features:
1. High shielding: the shell is usually made of metal material with good electromagnetic shielding performance, which can effectively prevent the influence of external electromagnetic interference on signal transmission and ensure the stability and reliability of the signal.
2. Strong durability: After special treatment and testing, it can work stably under harsh environmental conditions (such as high temperature, low temperature, humidity, etc.) and has a long service life.
3. Characteristic impedance is optional: the characteristic impedance mainly has two kinds, 50Ω and 75Ω, of which 50Ω is widely used in mobile communication, wireless data, paging system, etc., and 75Ω is mainly used in cable TV system.
Applications:
1. Aircraft communication system: In the communication system of aircraft, satellites and other aircraft, N-type connectors are used to connect various communication equipment and antennas to realize the communication between the aircraft, ground control center and other aircraft. Its anti-vibration and anti-shock characteristics can adapt to the complex environment of the aircraft in the flight process and ensure the stable operation of the communication system.
2. Radar system: In the radar system in the aerospace field, N-type connectors are used to connect radar transmitters, receivers, antennas and other components to transmit radar signals. As the radar system needs to work in a complex electromagnetic environment, the shielding performance of the connector requires high performance. The metal shell of the N-type connector can effectively prevent external electromagnetic interference and ensure the normal transmission of radar signals.
Product Category:
| RF Adapter |
| RF Cable Assemblies |
| MCX/MMCX RF Connector |
| J30J Series Connector |
| Microwave Rotary Joints |
| SMP/SSMP RF Connector |
| SMA/SSMA RF Connector |
| Glass-to-metal Hermetic Seals |
| Waveguide To Coaxial Adapter |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connectors, if the connectors you are using is not found, please contact us with your details.
