SBMA Hermetic Seal Female 2-hole Flange RF Coaxial Connector for PCB Board
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SBMA RF Conector | Plating: | Nickel / Gold Plated |
|---|---|---|---|
| Durability: | 500 Cycles | Contact Material: | Brass, BeCu |
| Material: | Brass | Design Standard:: | IEC 1169-33 |
| Type: | Straight | Gender: | Female |
| Highlight: | 2 hole Flange RF Coaxial Connector,PCB Board RF Coaxial Connector,SBMA Hermetic Seal RF Coaxial Connector |
||

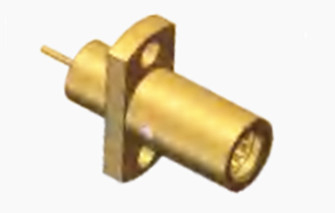

SBMA Hermetic Seal Female 2-hole Flange RF Coaxial for PCB Board
The SBMA series represents a compacted iteration of the BMA series coaxial connectors, also featuring blind-mate functionality. Its benefits include high bandwidth and minimal space occupation, effectively satisfying the demands for microwave device miniaturization and modularity.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50 Ohm | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 500 VRMS (Maximum sea-level) | |
| Insulation Resistance | ≥2000MOhm | |
| Contact Resistance | Outer conductor | <=2mOhm |
| Center conductor | <=6 mOhm | |
| VSMR | ≤1.25 | |
| Insertion Loss | ≤0.30dB | |
Product Detail
| Material & Mechanical Characteristics | |||
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated | |
| Resilience Contact | Beryllium bronze | Nickel Plated | |
| Shell / Housing | Brass,stainless steel | Nickel Plated | |
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| RoHS Compliant | Yes |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 0.6N max |
| Un-Coupling Force | 0.6 N max |
Environmental Specification:
| Operating Temperature | -65 to +165Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
1. Miniaturization:
Developed on the basis of the BMA product, it is a miniaturized version of it with higher installation density for applications with strict space requirements.
2. High degree of standardization:
In accordance with the standard production, product size, performance and other clear standards, to ensure compatibility and interchangeability between SBMA connectors produced by different manufacturers.
Application:
Test and Measurement Instruments:
In electronic test and measurement equipment, such as spectrum analyzers, network analyzers, signal generators, etc., it is necessary to use RF connectors to connect the equipment under test or test cables.SBMA connectors have superior performance to ensure accurate transmission of test signals, and improve the accuracy and reliability of test results.
Its high degree of standardization facilitates interface compatibility with other test equipment, making it convenient for users to carry out system integration and expansion.
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
