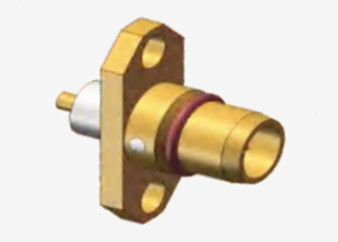

BMA Male 2-hole Flange RF Coaxial Connector for PCB Mount

BMA Male 2-hole Flange RF Coaxial Connector for PCB Mount


Product Detail:



Environmental Specification:


Features:

1. Reasonable structural design: structurally it is the push-in form of SMA series, and the interface interface adopts air interface, this design helps to reduce the volume and weight of the connector, while maintaining good electrical performance.

2. High reliability: with a high mechanical life, generally up to 500 times or more, can ensure stability and reliability in the long-term use of the process.

3. Wide range of application: suitable for a variety of microwave circuit connections, especially for chassis, cabinets, blind insertion and closure, conducive to the modularity of the radar and other complete systems, has been widely used at home and abroad.

Application:

1. Test and Measurement Instruments: In RF test instruments, such as spectrum analyzers, network analyzers, signal generators, etc., they are used to connect the RF signal transmission between the device under test and the test instrument. Its precise electrical performance and stable connection characteristics can ensure the accuracy and reliability of test results and help improve the efficiency and precision of test and measurement.

2. IoT devices: With the development of IoT, a large number of sensors and wireless communication modules need to be connected to the network.BMA microstrip RF coaxial connectors can be used to connect RF modules in IoT devices to the motherboard, realizing wireless communication and data transmission between the devices, and providing a reliable connection solution for IoT applications.

NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
