TNC Right Angle Male to Female RF Connector Adapter for Communication
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | TNC Conector | Plating: | Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Durability: | 500 Cycles |
| Contact Material: | Brass, BeCu | Material: | Brass |
| Design Standard:: | IEC 60169-17 | Type: | RA |
| Highlight: | Right Angle RF Connector Adapter,TNC RF Connector Adapter,Communication RF Connector Adapter |
||

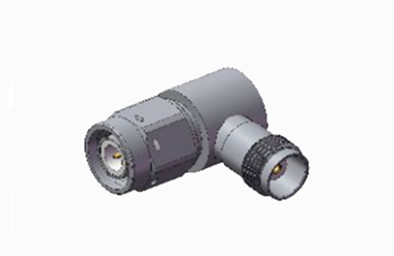

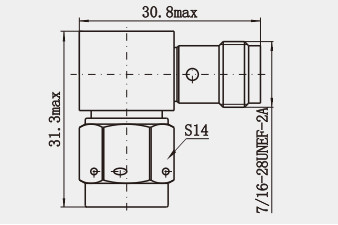

TNC Right Angle Male to Female RF Connector Adapter for Communication
The TNC series represents a threaded iteration of the BNC connector, characterized by its screw-thread mating design. These compact, threaded, and waterproof units consistently maintain a 50 Ohm impedance across a frequency range extending from DC to 11 GHz. The product line includes two primary variants: standard and reverse polarity connectors. Despite being constructed from lower-cost die-cast and molded materials, these connectors are optimized for commercial use, offering reliable performance in various applications. Notably, they excel in antenna connections and are prevalent in avionics, communications, and diverse industrial sectors. Additionally, reverse polarity and 75 Ohm versions of the TNC connectors are also offered to accommodate specific requirements.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
Electrical Characteristics | ||||
Impedance | 50Ω | |||
Frequency Range | DC~4GHz | |||
Rated Voltage | 2500VRMS (Maximum sea-level) | |||
Dielectrics Voltage-resistance | 750VRMS (Maximum sea-level) | |||
Insulation Resistance | ≥2000MΩ | |||
Contact Resistance | Outer conductor | ≤6mΩ | ||
Center conductor | ≤1.5mΩ | |||
VSMR | ≤1.3 | |||
Mechanical Specification
| Design Standard | IEC 60169-17 |
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |
Environmental Specification:
| Operating Temperature | -30 to +70 Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
Reasonable structural design
1. Small and lightweight: TNC adapters are relatively compact, small in size and light in weight, easy to carry and install without adding too much burden to the equipment, especially suitable for application scenarios with strict requirements on space and weight, such as aerospace, mobile communications and other fields.
2. Diversified models and installation methods: There are a variety of models to choose from, including male, female, straight, curved, panelized, through-the-wall, etc., which can meet different installation needs and space constraints. Meanwhile, its termination method is also more flexible, and can be installed by card connection, welding, crimping, etc., which is convenient for users to choose according to the actual situation.
Application:
1. Network Analyzer: In Network Analyzer, TNC adapter can be used to connect the port of the device under test and the analyzer to realize the RF performance test of the device under test, such as reflection coefficient, transmission coefficient and so on.
2. Spectrum Analyzer: In Spectrum Analyzer, the TNC adapter is used to connect the signal source under test and the input port of the analyzer to transmit the signal under test to the spectrum analyzer for analysis, which helps engineers to understand the frequency characteristics and spectral distribution of the signal.
3. Signal Generator: In Signal Generator, the TNC adapter can be used to connect the output port and the device or antenna under test, and transmit the signal generated by the Signal Generator to the device or antenna under test for various signal tests and experiments.
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
