Premium TNC Male to Male RF Coaxial Connector Adapter
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | TNC Conector | Plating: | Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Durability: | 500 Cycles |
| Contact Material: | Brass, BeCu | Material: | Bass |
| Design Standard: | IEC 60169-17 | Type: | Straight |
| Highlight: | Premium RF Coaxial Connector Adapter,TNC RF Coaxial Connector Adapter |
||

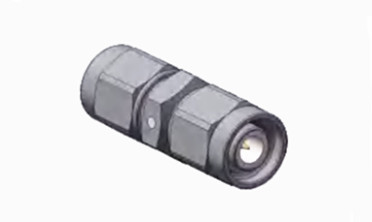

Premium TNC Male to Male RF Coaxial Connector Adapter
The TNC series stands as a threaded counterpart to the BNC connector, featuring screw threads for a secure connection. Compact and waterproof, these units maintain a consistent 50-ohm impedance across the DC-11 GHz frequency spectrum. Available in standard and reverse polarity, they are crafted from durable die-cast and molded materials, striking a balance between cost and performance. While they may not rival the excellence of industrial-grade connectors, their affordability makes them a popular choice for commercial ventures. Frequenting applications in antenna systems, avionics, communications, and broader industrial domains, TNC connectors have proven their versatility and reliability.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
Electrical Characteristics | ||||
Impedance | 50Ω | |||
Frequency Range | DC~4GHz | |||
Rated Voltage | 2500VRMS (Maximum sea-level) | |||
Dielectrics Voltage-resistance | 750VRMS (Maximum sea-level) | |||
Insulation Resistance | ≥2000MΩ | |||
Contact Resistance | Outer conductor | ≤6mΩ | ||
Center conductor | ≤1.5mΩ | |||
VSMR | ≤1.3 | |||
Mechanical Specification
| Design Standard | IEC 60169-17 |
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |
Environmental Specification:
| Operating Temperature | -30 to +70 Deg C |
| IP Rating ( Mated ) | IP64 |

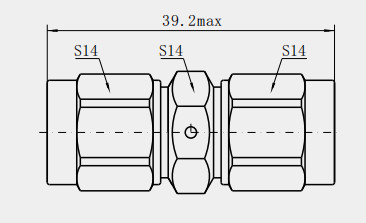

Detailed Drawing
Features:
1. Corrosion-resistant and dust-proof: with corrosion-resistant, durable and dust-proof properties, it can work stably under harsh environmental conditions and prolong its service life.
2. Strong anti-vibration: with good anti-vibration, it is suitable for mobile communication equipment under vibration conditions to ensure that the equipment can still work normally in the vibration environment.
3. Good mating durability: able to withstand at least 500 plugging and unplugging operations without damage, which is especially important in applications that require frequent connection and disconnection.
4. Adaptable to a wide range of cable types: Compatible with a wide range of common RG coaxial cables, such as RG58, RG59, RG142, etc., providing more options.
5. Multiple Installation Options: Provides both male and female forms, as well as straight and right-angle mounting options to accommodate different installation environments and space constraints, facilitating integration in different devices and systems.
Application:
1. Aircraft communication system: In the communication system of aircraft, satellites and other vehicles, TNC adapters are used to connect various communication equipment and antennas, such as airborne radios, satellite communication terminals and so on. Due to the aerospace environment on the reliability and durability of the connector requirements are extremely high, the TNC adapter's sturdy structure, good anti-vibration and shock resistance, so that it can be in the aircraft take-off, flight and landing process to maintain a stable signal transmission, to ensure that the aircraft and ground control centers, as well as other aircraft communication between the smooth.
2. Radar system: Radar system needs to use a large number of RF connectors to transmit high-frequency signals, TNC adapters can be used for radar transmitters, receivers and antennas between the connection. Its high-precision electrical performance and good shielding effect can reduce signal leakage and interference and improve the detection accuracy and resolution of radar.
NOTE:
We have over 10,000 types of TNC Connector, if the connector you are using is not found, please contact us with your details.
