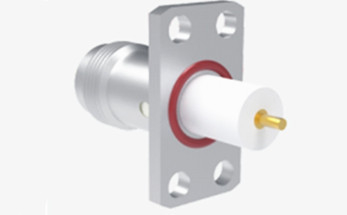

TNC Series Female 4-hole Flange RF Coaxial Connector with Micro-strip

TNC Series Female 4-hole Flange RF Coaxial Connector with Micro-strip

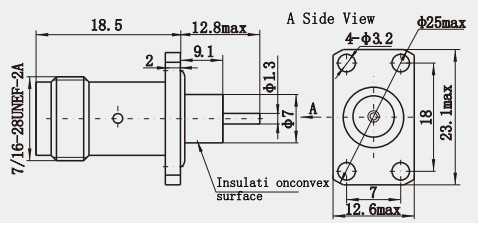

Product Drawing


Environmental Specification:


Features:
1. Good high-frequency performance: it can work in a higher frequency range to meet the requirements of modern communication technology for high-speed data transmission, and its working frequency band usually covers a range from a few GHz to dozens of GHz, which is suitable for high-frequency signal transmission such as microwave and millimeter-wave.
2. Low loss: the conductor loss and dielectric loss of microstrip line are relatively low, which makes the energy loss of the signal in the transmission process small, ensures the signal quality and transmission efficiency, and improves the overall performance of the system.


Application:
1. Experimental equipment connection: In the laboratories of scientific research institutions and universities, TNC connectors are used to connect various experimental equipment, such as spectrum analyzers, network analyzers, signal generators, etc., to support the transmission and measurement of high-frequency signals and meet the needs of researchers to conduct a variety of experimental research.
2. Teaching equipment connection: In the teaching of electronic information and other related majors, TNC connectors can be used to connect teaching experimental equipment, such as communication principle experiment box, electronic circuit experiment box, etc., to help students better understand and master related knowledge and skills.

NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
