TNC Female Nickel Plated Surface RF Coaxial Connector for MF147A/MF147B Cable

Large Image : TNC Female Nickel Plated Surface RF Coaxial Connector for MF147A/MF147B Cable Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	TNC-K416

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)

Contact Now

Detailed Product Description

Product Name:	TNC Conector	Plating:	Nickel Plated
Impedance:	50Ω	Durability:	500 Cycles
Contact Material:	Brass, BeCu	Material:	Bass
Design Standard:	IEC 60169-17	Type:	Straight
Highlight:	TNC Female RF Coaxial Connector , MF147B RF Coaxial Connector , Nickel Plated Surface RF Coaxial Connector

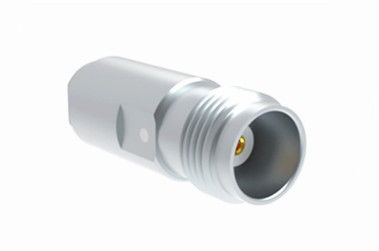

TNC Female Nickel Plated Surface RF Coaxial Connector for MF147A/MF147B Cable

The TNC series product is a threaded variant of the BNC connector, characterized by its screw-thread mating mechanism. TNC RF connectors are compact, threaded, and waterproof units that maintain a consistent 50-ohm impedance, functioning within the DC to 11 GHz frequency range. There are two variants of TNC connectors: standard and reverse polarity. These cost-effective connectors typically incorporate die-cast and molded components. Although their performance may not match that of industrial or high-performance products, they are well-suited for a broad array of commercial applications. TNC connectors are widely employed in antenna connections and have diverse applications in avionics, communications, and general industrial sectors.

TNC Female Nickel Plated Surface RF Coaxial Connector for MF147A/MF147B Cable 0

Specification
Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~4GHz
Rated Voltage	2500VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	750VRMS (Maximum sea-level)
Insulation Resistance	≥2000MΩ
Contact Resistance	Outer conductor	≤6mΩ
	Center conductor	≤1.5mΩ
VSMR	≤1.3

Mechanical Specification

Design Standard	IEC 60169-17
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500Cycles
Contact Retention	10N min
Cable Retention	100N min
Mating Force	13.6N max
Un-Coupling Force	13.6N max

Environmental Specification:

Operating Temperature	-30 to +70 Deg C
IP Rating ( Mated )	IP64

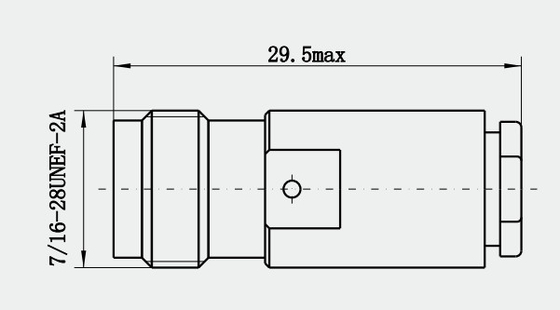

Detailed Drawing
TNC Female Nickel Plated Surface RF Coaxial Connector for MF147A/MF147B Cable 1
Features:

1. Low Insertion Loss: Introduces very little signal attenuation as the signal passes through, and typically in high frequency applications, the insertion loss is low, with minimal impact on the accuracy and precision of the signal transmission.
2. High Return Loss: With high return loss (reflection loss), it can effectively prevent signal reflection, reduce signal interference and distortion, and ensure the stability and consistency of signal transmission.
3. Good impedance matching: Common impedance is 50Ω, which is compatible with most RF systems and ensures the consistency of signal transmission.

Application:
1. Wireless base station: used to connect base station equipment and antenna to ensure efficient transmission of wireless signals. For example, in the construction of 5G base station, TNC connector can guarantee the stability of RF coaxial cable connection between base station equipment and antenna, so that wireless signals can be transmitted and received accurately and quickly.

2. Network equipment: The connection involving wireless communication part in network equipment such as routers and switches may use TNC connectors to realize data transmission and exchange.

NOTE:
We have over 10,000 types of TNC Connector, if the connector you are using is not found, please contact us with your details.
