Brass K2.92mm Female 2-hole Flange RF Coaxial Connector with Micro-strip

Large Image : Brass K2.92mm Female 2-hole Flange RF Coaxial Connector with Micro-strip Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT
Certification:	ISO-9001-2015
Model Number:	K-KFD42

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	35000pcs/year

Contact Now

Detailed Product Description

Type:	2.92mm,K Type,SMK	Keywords:	2 Holes Flange Panel Connectors
Item:	Millimeter Wave Connectors	Plating:	Gold Plated
Application:	RF/Satcom	Insulator:	PTFE
Impedence:	50Ohm	Gender:	Female
Highlight:	K2.92mm Brass RF Coaxial Connector , Micro-strip RF Coaxial Connector , 2-hole RF Coaxial Connector

Brass K2.92mm Female 2-hole Flange RF Coaxial Connector with Micro-strip

The K-type connector, also known as the 2.92-type connector, is a popular series of millimeter-wave connectors that can operate at frequencies up to 40GHz. It features an air interface and is interchangeable with SMA and 3.5 series products. This series offers advantages such as compact size, lightweight design, high-frequency operation, and reliable connectivity.

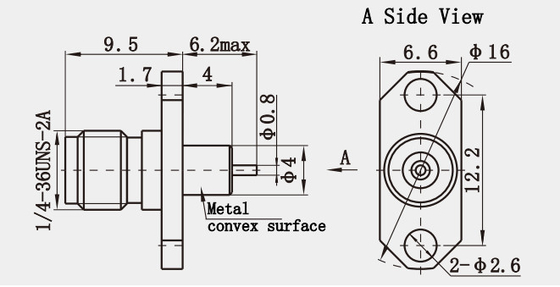

Brass K2.92mm Female 2-hole Flange RF Coaxial Connector with Micro-strip 0

Specification:

Note: The specific data of the model are based on the data in the product specification sheet.

Impedance	50Ω
Frequency Range	DC - 40GHz
Voltage Rating	250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage	750 VRMS (Max. Sea Level)
Voltage Standing Wave Ratio VSWR	≤ 1.05 + 0.005f
Contact Resistance	Center Conductor ≤ 3.0 mΩ
	Outer Conductor ≤ 2.0 mΩ
Insulation Resistance	≥ 5000 MΩ

Inner Conductor	Male plug: Brass, Gold Plated
	Female Jack: BeCu, Gold Plated
Resilient Contact	BeCu, Nickel Plated
Body / Shell / Housing	Brass, Gold Plated Stainless Steel, Passivated
Insulator	PEI
Gasket	Silicone Rubber
Temperature	-55℃ ~ +125℃
Durability	500 Cycles
Torque	0.79 ~ 1.13 N.m

Other 2.92mm Male Female RF Connector

Part Number	Description
K-KFD21	2.92mm Type K Female RF Coaxial Connector
K-KFD87G	Stainless steel 2.92mm Type K Female RF Coaxial Connector
K-KFD42	2.92mm Type K Female RF Coaxial Connector
K-JFD61G	Stainless steel 2.92mm Type K Male RF Coaxial Connector

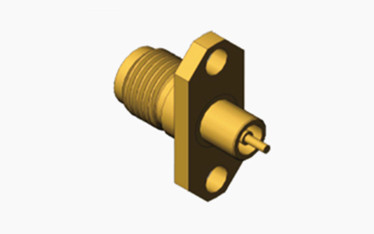

Brass K2.92mm Female 2-hole Flange RF Coaxial Connector with Micro-strip 1

Brass K2.92mm Female 2-hole Flange RF Coaxial Connector with Micro-strip 2

Brass K2.92mm Female 2-hole Flange RF Coaxial Connector with Micro-strip 3

Brass K2.92mm Female 2-hole Flange RF Coaxial Connector with Micro-strip 4

Features:

Frequency Range: The Brass K-type connector operates at frequencies up to 40 GHz, making it suitable for millimeter-wave applications. This wide frequency range allows it to be used in various high-frequency communication systems and radar technologies.
Material: Made from high-quality brass, these connectors offer excellent mechanical strength and durability. Brass is known for its resistance to corrosion and wear, ensuring long-lasting performance even in harsh environments.
Design: The compact and lightweight design of the Brass K-type connector makes it easy to handle and install, even in confined spaces. Its air interface allows for interchangeability with SMA and 3.5 series products, providing flexibility in system design and integration.
Performance: With low insertion loss and return loss, the Brass K-type connector ensures efficient signal transfer with minimal attenuation. This is crucial for maintaining signal integrity over longer distances and improving overall system performance.

Application:

Telecommunications: Used in base station antennas, satellite communication systems, and microwave radio links to ensure efficient and stable signal transfer.
Radar Systems: Employed in civilian radar systems for detecting and tracking objects at high frequencies.
Broadcasting: Utilized in television and radio broadcasting equipment to transmit high-frequency signals over long distances.
Aerospace: Integrated into avionics systems for communication and navigation purposes.
Scientific Research: Used in laboratory instruments and test equipment that require precise high-frequency measurements.

Brass K2.92mm Female 2-hole Flange RF Coaxial Connector with Micro-strip 5
