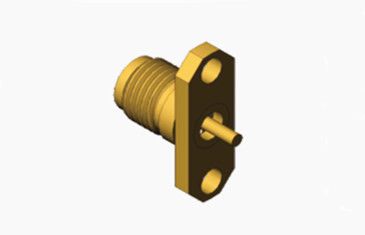

K Series 2.92mm Brass Female Flange Mount RF Connector with Microstrip

 K Series(2.92mm) Brass Female Flange Mount RF Connector with Microstrip

The K type connector, also known as the 2.92 type connector, is a widely used millimeter wave connector series. It supports frequencies up to 40 GHz and can be interchanged with SMA series and 3.5 series products through an air interface. This connector features a compact size, lightweight design, high-frequency performance, and reliable connection.

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

Other 2.92mm Male Female RF Connector

2.

3.

4.

Features:

Application:

1. Minimal Signal Degradation: The small size and air dielectric significantly reduce signal loss and distortion, preserving signal integrity at higher frequencies where these effects become more pronounced.
2. Space Efficiency: The compact form factor enables closer component placement on PCBs, facilitating the design of highly integrated electronic systems without compromising performance.
3. Durability and Reliability: Brass construction combined with a robust connection mechanism ensures long-term reliability even under harsh environmental conditions common in high-frequency applications, such as extreme temperatures or mechanical stresses.
4. Optimized for Millimeter Wave Spectrum: Designed specifically for operation in the millimeter wave range, the 2.92mm connector's characteristics align perfectly with the requirements of modern communication systems and radar technologies that operate at these frequencies.
