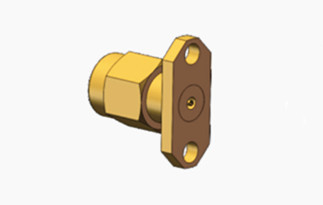

K Male 2.92mm Brass Male 2-hole Flange PCB Mount RF Coaxial Connector

  K Male 2.92mm Brass Male 2-hole Flange PCB Mount RF Coaxial Connector

K-type(2.92mm,SMK) millimeter wave connectors also called 2.92mm connectors. It's one of the most popular meter wave connectors.The broad frequency range is up to 40GHz. They can be mated with SMA and 3.5mm connectors.
These K-type (2.92mm,SMK) connectors are adopt air interface, which makes them with small in size, light in weight and very reliable in connection, etc.High-precision 50Ohm coaxial 2.92 mm (Female) connectors are designed for universal RF and microwave applications. These high-performance connectors are utilized in a broad spectrum of test and measurement environments, extending from cellular to satellite communications, ensuring accurate equipment and cable interconnect compatibility. Manufactured from sturdy stainless steel, these connectors are built to endure repeated usage. They are equipped with an air dielectric system and incorporate a low-loss plastic center conductor support.

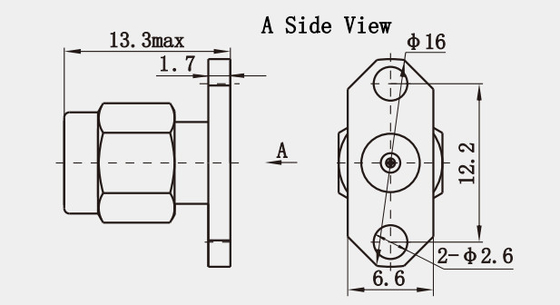

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

Other 2.92mm Male Female RF Connector

2.

3.

4.

Features:

1. Material Properties: The housing of the K 2.92 type connector is typically made of stainless steel or brass with gold plating, providing good corrosion resistance and wear resistance. The inner conductor is made of beryllium copper with gold plating, ensuring good electrical performance and mechanical strength.

2. the K 2.92 stainless steel PCB-mounted RF coaxial connector, with its high frequency range, mechanical compatibility, structural features, material properties, and excellent electrical performance, has been widely recognized and applied in multiple fields.

Application:

1. Communication Field: In communication fields such as wireless communication base stations and microwave communication equipment, the K 2.92 type connector is also widely used. Its high frequency range and good transmission performance enable it to meet the needs of modern communication technology, improving communication quality and efficiency.
2. Medical Equipment: The K 2.92 type connector is also used in medical imaging equipment, radiofrequency therapeutic devices, and other medical devices. Its high precision and reliability ensure the normal operation and treatment effect of medical equipment.
3. Other Fields: In addition to the above main application areas, the K 2.92 type connector is also widely used in automotive electronics, smart homes, industrial automation, and other fields, providing reliable connections and signal transmission for various electronic devices and systems.
