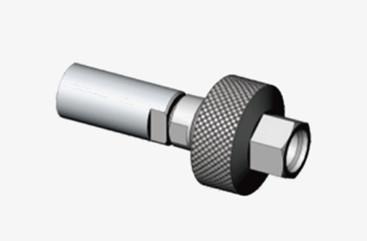

K2.92mm Male Stainless Steel RF Connector for MF540A Cable Plug

K2.92mm Male Stainless Steel RF Connector for MF540A Cable Plug

K-type (2.92mm,SMK) connectors are adopt air interface, which makes them with small in size, light in weight and very reliable in connection, etc.

These K-type(2.92mm,SMK) millimeter wave connectors, also called 2.92mm connectors. It's one of the most popular meter wave connectors.The broad frequency range is up to 40GHz. They can be mated with SMA and 3.5mm connectors.

These high-precision 50Ohm coaxial 2.92 mm (Female) connectors are designed for general-purpose RF and microwave applications. They are widely used in various test and measurement scenarios, from cellular to satellite communications, ensuring proper equipment and cable interconnectivity. Constructed from durable stainless steel, these high-performance connectors are engineered to withstand repeated use. They feature an air dielectric and a low-loss plastic center conductor support.

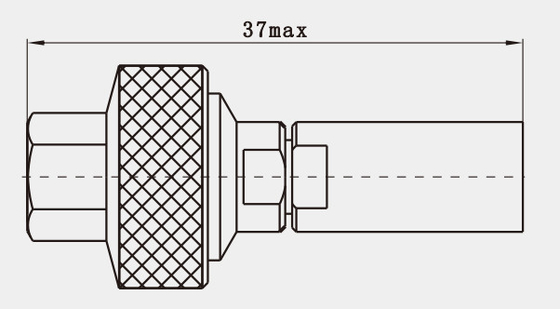

Outline Drawing

Specification of 2.92mm 50Ohm Stainless Steel Straight RF Coaxial Connector Female ​:(mm)

Note:The specific data of the model are based on the data in the product specification sheet.

Features:

1. Easy assembly: The assembly technique for the K-type connector is similar to that of the SMA connector, supported by a complete set of assembly tools. This not only ensures the precision of the connector but also makes the assembly process more manageable.
2. Cost-effective: Compared to other high-performance connectors like the APC-3.5, the K-type connector is more economically priced, helping to reduce costs.
3. Structural features: The outer diameter of the inner conductor of the K-type connector is 2.92mm, with a characteristic impedance of 50Ω and a connection mechanism of 1/4-36UNS-2 inch threads. These structural features contribute to its excellent electrical connectivity.

Application:

1. Instrumentation and Testing: K-type connectors are integral to precision signal connections and transmissions in test and measurement equipment. This includes network analyzers, spectrum analyzers, and other high-precision testing devices where connector performance directly impacts test outcomes.
2. Medical Equipment: For medical imaging equipment such as MRI machines, K-type connectors transmit high-frequency signals necessary for clear image quality and accurate diagnoses. Their low-loss characteristic is vital for preserving signal integrity.
3. Scientific Research: K-type connectors facilitate precise experiments and data collection in scientific research laboratories by connecting various high-frequency testing devices and instruments.

Other 2.92mm Male Female RF Connector:

2.

3.

4.

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
