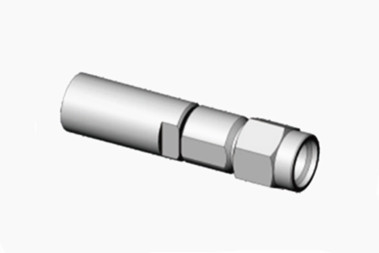

Straight K2.92mm Male Stainless Steel RF Connector for MF540A Cable

Straight K2.92mm Male Stainless Steel RF Connector for MF540A Cable

K-type (2.92mm,SMK) connectors are adopt air interface, which makes them with small in size, light in weight and very reliable in connection, etc.

These K-type(2.92mm,SMK) millimeter wave connectors, also called 2.92mm connectors. It's one of the most popular meter wave connectors.The broad frequency range is up to 40GHz. They can be mated with SMA and 3.5mm connectors.

High-precision 50-ohm coaxial connectors with a 2.92 mm (female) interface cater to versatile RF and microwave applications. These premium connectors are extensively deployed across test and measurement environments, spanning from cellular infrastructure to satellite communications, ensuring optimal equipment synergy and cable connectivity. Fabricated from robust stainless steel, they promise longevity even with frequent handling. Their design incorporates an air dielectric alongside a low-loss plastic center conductor support, enhancing signal integrity and durability.

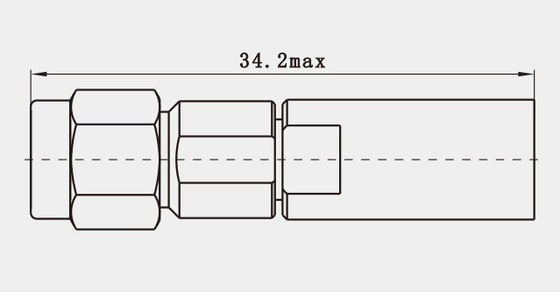

Outline Drawing of Straight K2.92mm Male Stainless Steel RF Connector for MF540A Cable ​

Specification of 2.92mm 50Ohm Stainless Steel Straight RF Coaxial Connector Female ​:(mm)

Note:The specific data of the model are based on the data in the product specification sheet.

Features:

1. Excellent electrical performance: It demonstrates superior electrical performance at frequencies below 40GHz, particularly excelling below 18GHz where its performance surpasses that of the SMA connector.
2. Good compatibility: The K-type connector is electrically and mechanically compatible with existing SMA and APC-3.5 connectors, facilitating interoperability between different systems.

Application​:(mm)

1,Telecommunications: Given its excellent electrical performance at high frequencies, the K-type connector is extensively used in mobile communication base stations, satellite communication systems, and wireless communication equipment, ensuring low loss and stable signal transmission.
2,Radar Systems: In radar systems, K-type connectors link transmitters, receivers, and antennas for signal transmission. The high reliability and superior electrical properties of these connectors are crucial for maintaining signal integrity and accuracy in radar applications.
3,Aerospace Equipment: The aerospace industry values the durability and reliability of K-type connectors, which are employed in aircraft, satellites, and other spacecraft for communication and control systems that must operate reliably in extreme environments.

Other 2.92mm Male Female RF Connector:

2.

3.

4.

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
