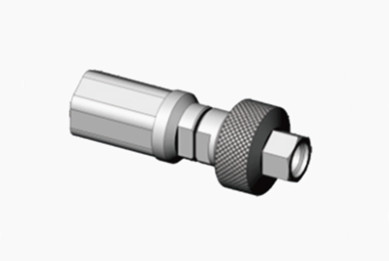

K2.92 Male Stainless Steel RF Coax Connector For MF30/MF30A/TLL40-1130A Cable

Large Image : K2.92 Male Stainless Steel RF Coax Connector For MF30/MF30A/TLL40-1130A Cable Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT
Certification:	ISO-9001-2015
Model Number:	K-J130BG-1

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	35000pcs/year

Contact Now

Detailed Product Description

Product Name:	2.92 Mm	Material:	Brass/Stainless Steel
Type:	Straight	Gender:	Male
Palting:	Gold Plated,Passivation	Durability (matings):	500 Cycles
Weight:	About 80~120g
Highlight:	TLL40-1130A RF Coax Connector , MF30A RF Coax Connector , MF30 RF Coax Connector

K2.92 Male Stainless Steel RF Coax Connector for MF30/MF30A/TLL40-1130A Cable

The K type, also known as the 2.92mm connector, is a widely used millimeter-wave connector employed in diverse applications. It is designed to function at frequencies up to 40GHz. This connector can be interchanged with SMA series and 3.5mm connectors using an air interface. The K type connector is characterized by its small size, lightweight, high operational frequency capabilities, and it provides reliable connections.

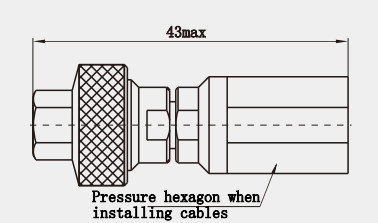

Product Drawing:
K2.92 Male Stainless Steel RF Coax Connector For MF30/MF30A/TLL40-1130A Cable 0

Electrical Characteristics
Note:The specific data of the model are based on the data in the product specification sheet.

Impedance	50Ω
Frequency Range	DC - 40GHz
Voltage Rating	250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage	750 VRMS (Max. Sea Level)
Voltage Standing Wave Ratio VSWR	≤1.05+0.005f
Contact Resistance	Center Conductor ≤ 3.0 mΩ
	Outer Conductor ≤ 2.0 mΩ
Insulation Resistance	≥ 5000 MΩ

Inner Conductor	Male plug: Brass, Gold Plated
	Female Jack: BeCu, Gold Plated
Resilient Contact	BeCu, Gold Plated
Body / Shell / Housing	Brass, Gold Plated Stainless Steel, Passivated
Insulator	PEI/PLF
Gasket	Silicone Rubber
Temperature	-55℃ ~ +125℃
Durability	500 Cycles
Torque	0.79 ~ 1.13 N.m

Product Features:
the K2.92mm connector has good compatibility, mixing different models of connectors for long periods may damage the connectors, so it is recommended to avoid such combinations as much as possible.
When choosing to use the K2.92mm connector, consider whether the operating frequency range of the equipment matches its performance indicators to ensure normal operation of the equipment and accurate signal transmission.

Application:

Satellite Communications
Antenna Connection: The K2.92 connector plays a key role in satellite communication antenna systems, connecting the antenna to the transmission/reception equipment for high-frequency signal transmission .
Base Station Construction: Thanks to its excellent durability and stability, this connector is also widely used in the construction and maintenance of satellite communication base stations, ensuring long-term reliable operation .

Our Company:

NOTE:
We can supply over 1000 types of RF connectors, if it is not match with your request,pls contact us.
