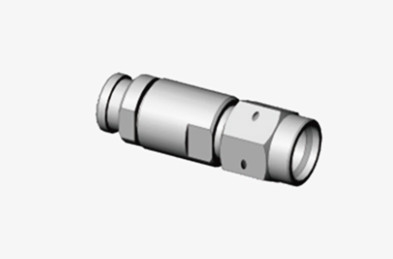

K2.92 Series Male Stainless Steel RF Coax Connector for SF103E Cable
Xi'an Elite Electronics offers a comprehensive range of RF interconnect components, including the 2.92mm coaxial female connector. This connector features a bus-type design with a 50Ohm impedance level. Our 2.92mm coaxial cable female connector is designed with standard polarity, encompassing diaphragm type, 4-hole flange type, and bracket-free type configurations.
The product series for the 2.92mm female connector provides various connection options such as clamping/non-welding contact, clamping/welding, welding, and welding/non-welding contact. The compatible cable types for the 2.92mm female connector include #2 Semirigid/flexible/CXN3506/CXN3507/MF108A/MF363A.

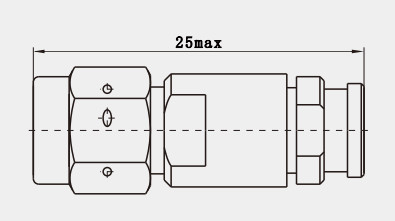

Specification:
| Impedance | 50Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: Beryllium bronze, Gold Plated | |
| Body / Shell / Housing |
Brass, Gold Plated, Stainless Steel, Passivated |
| Insulator | PEI/PLF |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features:
Threaded Connection: K connectors usually feature a 1/4-36UNS-2 inch threaded connection mechanism, providing a secure mechanical attachment and preventing loosening due to vibration or impact.
Compatibility with Other Connectors: Although the K connector is specifically designed for high frequencies, it is compatible with other types of connectors such as SMA and 3.5mm, allowing connections through adapters, which enhances system flexibility and compatibility.
Application:
Commercial Sector:
In commercial aviation and marine equipment, K-series stainless steel RF coaxial connectors are used to ensure the reliable operation of critical communication systems and navigation systems. For example, they are widely used in satellite communication systems, aviation radar, and ship communication equipment .
The high durability and excellent shielding performance of these connectors make them excel in these demanding commercial applications .
