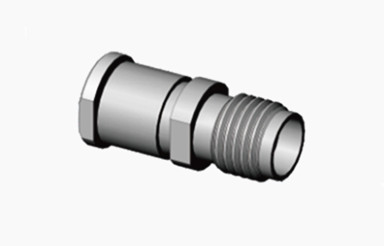

K2.92 Female Stainless Steel High Performance RF Coaxial Connector for SF102/E Cable

K2.92 Female Stainless Steel High Performance RF Coaxial Connector for SF102/E Cable


Xi'an Elite Electronics' 2.92 precision connectors feature a 50Ω impedance and an outer diameter of 2.92mm. They are suitable for test & measurement applications up to 40GHz, ensuring these high-quality connectors meet the highest levels of reliability and repeatability performance. The 2.92 connectors are intermateable with most 2.92, 3.5, SMA, as well as K connectors. Within the series of RF connectors, the 2.92mm K connectors form part of a very wide range of radio frequency connector sections.The 2.92mm connectors come in both male and female genders, with the male pin being shorter than that of the 3.5mm to ensure that the external contacts of the male and female connectors engage before the pin and female receptacle do. The RF connector 2.92mm covers a frequency range from 18GHz to 40GHz.

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

Features:
Superior electrical performance: In addition to high frequency transmission capability, the K2.92 connector also focuses on signal integrity and stability. Its design helps reduce signal loss and reflection, ensuring high performance and reliability during transmission.
Durable material: As a stainless steel connector, the K2.92 boasts excellent corrosion resistance and durability. Stainless steel material ensures that the connector maintains good performance even in harsh environments, such as high temperature, humidity, and corrosive gases, which is crucial for improving the service life and reliability of the connector.
Application:
Calibration kits and test suites: During manufacturing and debugging, K2.92 connectors are used to produce calibration pieces and test suites to ensure that millimeter wave equipment meets the highest performance standards before leaving the factory . Their excellent connection reliability and durability ensure the stability and consistency of the testing process.
Laboratory applications: In various scientific laboratories, K2.92 connectors are widely used for high-precision signal transmission between experimental devices . Researchers use these connectors for precision experiments to obtain reliable experimental data, further promoting technological development.
