Stainless Steel K2.92 Series Male Right Angle RF Coaxial Connector Plug
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Stainless Steel | Gender: | Male |
|---|---|---|---|
| Product Name: | 2.92mm,K Type,SMK | Keywords: | Cable Connector |
| Item: | Millimeter Wave Connectors | Plating: | Nickel Plated |
| Application: | RF | Surface Plating: | Passivate |
| Highlight: | Stainless Steel RF Coaxial Connector Plug,K2.92 Series RF Coaxial Connector Plug |
||

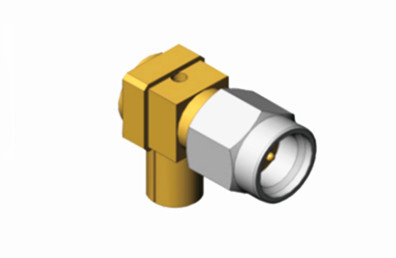

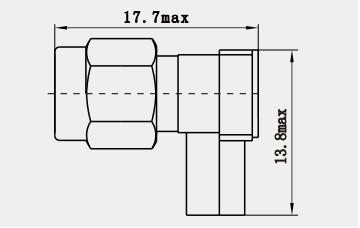

Stainless Steel K2.92 Series Male Right Angle RF Coaxial Connector Plug
Xi'an Elite Electronics offers right angle cable assemblies and connectors that boast exceptional electrical performance, covering a frequency range from DC up to 40GHz. These high-performance connectors strike a perfect balance between compactness and durability, ensuring there's no compromise on performance despite their space-saving design. They are currently available for the CXN3506 and MF108A cable types and come in both SMA and 2.92mm series.
Specification:
| Impedance | 50Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: Beryllium bronze, Gold Plated | |
| Body / Shell / Housing |
Brass, Gold Plated, Stainless Steel, Passivated |
| Insulator | PEI/PLF |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features:
Physical structure
*Compact design: The K2.92 stainless steel connector, part of the 2.92mm series of RF coaxial connectors, is widely known as the K type or SMK connector. This connector is compact and lightweight, making it suitable for use in space-constrained applications. Its miniaturized design not only saves space but also makes the connector easier to layout and integrate in complex systems.
*Interchangeability: The design of the K2.92 connector takes into account interchangeability with other connectors such as SMA and 3.5mm, greatly enhancing its applicability in various devices and systems. This compatibility allows users to flexibly choose different types of connectors based on specific application requirements.
Application:
*Miniaturized devices: Due to its small size, this connector is suitable for use in space-limited high-end equipment, such as millimeter wave radio modules in drones and portable communication devices . The compact design not only saves space but also reduces the total weight of the equipment, making installation and usage more flexible.
*Compatibility: The design of the K2.92 connector takes into account interchangeability with other connectors such as SMA and 3.5mm, enhancing its applicability in various devices and systems . Users can flexibly choose different types of connectors to adapt to specific application requirements, thereby improving the overall performance and reliability of the system.
