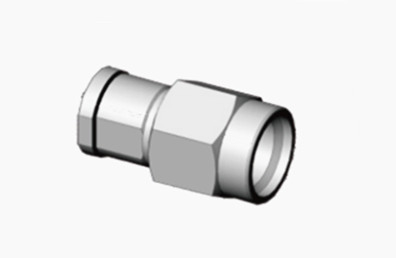

Reliable K2.92 Male Stainless Steel RF Coaxial Connector for Peak Performance and Durability

Reliable K2.92 Male Stainless Steel RF Coaxial Connector for Peak Performance and Durability

Crafted for precision and reliability, our 50Ohm coaxial 2.92 mm (Female) connectors offer top-tier performance tailored for universal RF and microwave applications. Ideal for an extensive array of test and measurement scenarios—from cellular to satellite communications—these connectors ensure optimal equipment and cable interconnect matching. Manufactured from sturdy stainless steel, they are built to endure frequent usage. Their design incorporates an air dielectric system complemented by a low-loss plastic support for the center conductor, ensuring minimal signal loss and enhanced durability

Outline Drawing of 2.92mm Type K Female RF Coaxial Connector:(mm)

Features:

1. Low Insertion Loss
Minimized Signal Attenuation: The design and manufacturing of the K2.92 millimeter connector ensure low insertion loss, which means signal attenuation is effectively reduced during connections, an important characteristic for high-frequency applications requiring high-quality signal transmission .
2. Consistent Impedance Matching
Impedance Matching Performance: The internal structure and material selection of the K2.92 millimeter connector guarantee highly consistent impedance matching, which is beneficial for high-quality signal transmission. Impedance matching is a critical parameter in assessing connector performance, affecting signal reflection and loss .

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

Application:

Electronic Countermeasures
Signal Interception and Analysis: In electronic countermeasure systems, the K2.92 connector is used to connect key components, ensuring reliable transmission of high-frequency signals, thereby effectively intercepting and analyzing enemy electronic signals .
Countermeasures: The K2.92 connector is also used to implement electronic countermeasures, interfering with the normal operation of enemy electronic equipment through high-frequency signal transmission and processing .

Other 2.92mm Male Female RF Connector:

2.

3.

4.

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
