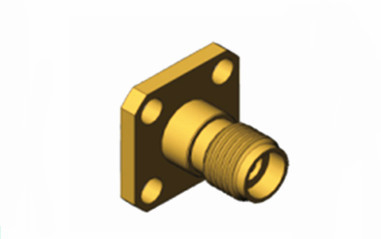

K2.92 Series Gold Plated 4-hole Flange Brass RF Coaxial Connector For 2 Semi - Rigid / Flexible Cable
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Description: | Millimeter Wave SMK Connectors | Key Features: | 4 Holes Flange Panel Connectors |
|---|---|---|---|
| Plating: | Gold Plated | Insulator: | PTFE |
| Body Style: | Straight | Material: | Brass |
| Color: | Golden | Gender: | Jack |
| Highlight: | 4-hole RF Coaxial Connector,Gold Plated RF Coaxial Connector,K2.92 Series RF Coaxial Connector |
||

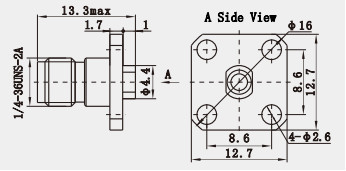

K2.92 Series Female 4-hole Flange RF Brass Coaxial Connector for 2#Semi-rigid/flexible Cable
The 2.92 mm female connectors, precision-engineered for 50Ohm coaxial applications in RF and microwave settings, offer superior performance. These connectors are widely employed across diverse testing and measurement contexts, including cellular and satellite communication systems, to ensure equipment and cable interconnects are perfectly matched. Manufactured from robust stainless steel, these units are built to sustain continuous usage. They are characterized by an air dielectric design and incorporate a low-loss plastic support for the center conductor.Test and Measurement Equipment:
In high-frequency test and measurement equipment, K2.92 connectors are widely used because of their low insertion loss and extremely low reflection loss. These characteristics ensure the accuracy and repeatability of measurements .
These connectors can effectively reduce signal interference and data loss, ensuring the accuracy of test results.
Features:
High-Frequency Performance:
The design of K-type connectors can operate up to 46GHz, covering the entire 8mm frequency band, making them ideal for millimeter-wave applications .
With the development of millimeter-wave technology, the importance of these connectors in high-frequency transmissions has become increasingly prominent, becoming the mainstream millimeter-wave connectors in market demand .
These connectors can maintain a low standing wave ratio and low insertion loss up to 40 GHz, ensuring stable signal transmission and minimal attenuation .
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Impedance | 50Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
| Voltage Standing Wave Ratio VSWR |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated | |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated Stainless Steel, Passivated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Application:
Test and Measurement Equipment:
In high-frequency test and measurement equipment, K2.92 connectors are widely used because of their low insertion loss and extremely low reflection loss. These characteristics ensure the accuracy and repeatability of measurements .
These connectors can effectively reduce signal interference and data loss, ensuring the accuracy of test results.
Other 2.92mm Male Female RF Connector:
|
Part Number
|
Description
|
|
K-KFD14
|
2.92mm Type 4-hole Flange Mount K Female RF Coaxial Connector
|
|
K-KFD23
|
2.92mm Type 2-hole Flange Mount K Female RF Coaxial Connector
|
|
K-KFD7
|
2.92mm Type 2-hole Flange Mount K Female RF Coaxial Connector
|
|
K-KFD167 |
2.92mm Type 4-hole Flange Mount K Female RF Coaxial Connector
|
1.
2.
3.
4.
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
