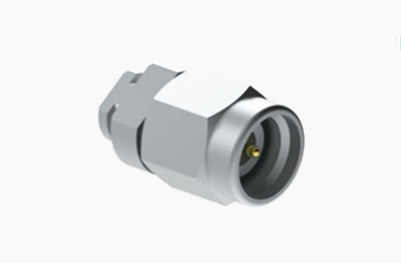

K2.92 Male Stainless Steel RF Coaxial Connector for 2#Semi-rigid/flexible Cable

The K type, also known as the 2.92 type connector, represents a series of products that are commonly utilized millimeter-wave connectors. These connectors can operate at frequencies up to 40 GHz and are designed to be interchangeable with SMA series and 3.5 series products, employing an air interface. They are characterized by their small size, lightweight construction, high-frequency capabilities, and reliable connectivity.

Outline Drawing of 2.92mm Female Straight 2 holes flange RF Coaxial Connector:(mm)

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

Features:

1. Small Size and Lightweight:
With an outer conductor diameter of just 2.92mm, the miniaturized design of the 2.92mm connectors makes them suitable for space-constrained applications, such as portable measurement equipment and compact system layouts .
Their lightweight design not only facilitates handling but also reduces the overall burden on equipment, especially in scenarios requiring frequent movement or reconfiguration .
2. Mechanical Durability and High Reliability:
Made from stainless steel or brass with a gold-plated finish, these connectors ensure good mechanical strength and corrosion resistance . Their durability allows for up to 1000 mating cycles .
Equipped with a self-alignment feature, the 2.92mm connectors help protect the female socket, preventing damage during connection and enhancing overall connection reliability .

Application:

the 2.92mm connectors, with their high-frequency range, small size, lightweight design, mechanical durability, excellent electrical performance, and extensive industry standard compatibility, have become an indispensable key component in millimeter-wave instruments and systems. For applications requiring high frequency and precise connections, the 2.92mm connectors offer an efficient and reliable solution.

Other 2.92mm Male Female RF Connector

2.

3.

4.

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
