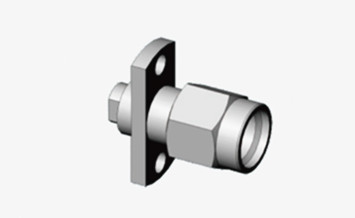

2.92mm Series Male 2-hole Flange RF Coaxial Plug for 2#Semi-rigid/flexible Cable
The 2.92 mm female connectors, precision-engineered for 50Ohm coaxial applications, are essential for a broad spectrum of RF and microwave purposes. Renowned for their high-performance nature, these connectors play a critical role in ensuring accurate equipment and cable interconnections across diverse test and measurement environments—spanning from terrestrial cellular networks to sophisticated satellite communications systems. Crafted from durable stainless steel, these connectors are meticulously designed to endure the rigors of repeated usage. They are characterized by an air dielectric design, complemented by a central conductor support made from a specialized, low-loss plastic material, ensuring optimal signal transmission efficiency and longevity.
This alternative expression seeks to convey the same technical attributes and applications of the 2.92 mm connectors while employing a varied vocabulary and sentence structure for enhanced readability and engagement.

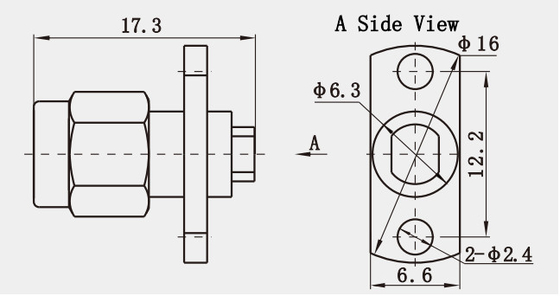

Outline Drawing :(mm)
Specification (mm):
Note:The specific data of the model are based on the data in the product specification sheet.
| Impedance | 50Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
| Voltage Standing Wave Ratio VSWR |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated | |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated Stainless Steel, Passivated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features (mm) :
* Material Selection
Brass Gold-Plated Body: The body of the K2.92mm connector is typically made of stainless steel or brass with a gold plating, enhancing mechanical strength, corrosion resistance, and conductivity.
Characteristic Impedance: The K2.92mm connector has a standard 50Ω characteristic impedance, crucial for ensuring signal transmission stability and reducing reflection loss.
Application (mm):
1. Satellite Communications:
K2.92 connectors are utilized in ground station equipment for satellite communications, where its high-frequency performance allows for high data rate transmissions, crucial for modern high-speed satellite communications.
In satellite data transmission and remote sensing applications, the low insertion loss and low VSWR characteristics of the K2.92 connector ensure signal quality and minimize data loss and errors.
2. Test Instruments:
The K2.92 connector is widely used in high-frequency test instruments such as network analyzers and spectrum analyzers, which require high-precision connectors for accurate measurements.
The compatibility of the K2.92mm connector, which can be interchanged with SMA and 3.5mm connectors, adds flexibility in testing equipment and adapts to various testing environments.
