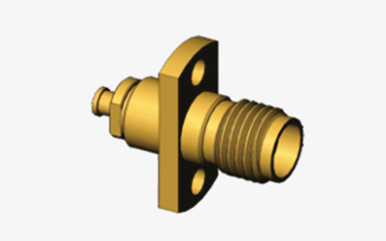

K2.92 Type Female RF Coaxial Cable Connector For 1# Semi-rigid/flexible Millimetre Cable

       K2.92 Type Female RF Coaxial Cable Connector for 1# Semi-rigid/flexible Millimetre Cable

Often designated as the "K type," the 2.92 connectors are a staple in millimeter wave technology due to their ability to support frequencies of up to 40 GHz. These adapters not only facilitate interchanging with SMA and 3.5 series counterparts but also incorporate an air dielectric system. They are distinguished by their streamlined construction, minimal weight, superior performance at elevated frequencies, and ensure consistent linkage.

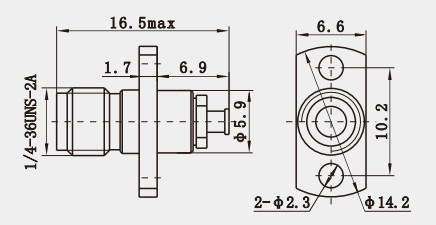

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.


Features:

1. High-Frequency Merits
Low Loss: Maintains low insertion loss at high frequencies, ensuring signal integrity.
Shielding Effectiveness: Good shielding reduces electromagnetic interference and enhances signal quality.
2. Mechanical Stability
Structural Integrity: Designed to maintain good mechanical performance even after prolonged use.
Environmental Resistance: Adaptable to environments, capable of operating stably under harsh conditions.

Other 2.92mm Male Female RF Connector

2.

3.

4.

Application:

1. Test and Measurement Equipment
High-frequency test and measurement instruments, such as network analyzers and spectrum analyzers, use 2.92mm connectors for precise signal input and output.
These connectors assist engineers and technicians in achieving high-quality, reproducible test results.

2. Broadcasting and Imaging Equipment
In broadcast transmission equipment and professional imaging devices, 2.92mm connectors are used for transmitting high-definition video signals.
This ensures that signal quality is not compromised from the camera to the playback device throughout the entire process.
