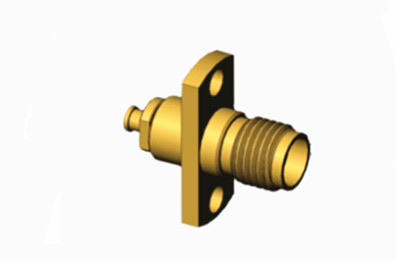

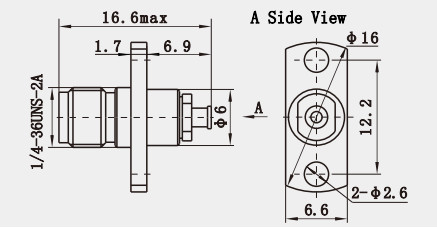

K2.92 Series Brass Material Female Cable Connector for 1#Semi-rigid/flexible Cable
The "K type" connector, referred to as the 2.92 type, represents a collection of connectors frequently used in millimeter wave applications. Capable of handling frequencies up to 40 GHz, these connectors offer interchangeability with both SMA and 3.5 series products and make use of an air dielectric interface. Notable for their compact size, low weight, and ability to function at high frequencies, these connectors provide dependable connections.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Impedance | 50 Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
| Voltage Standing Wave Ratio VSWR |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated | |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated Stainless Steel, Passivated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features:
1. Compact and Lightweight Design
Size Advantage: The small size and light weight of the 2.92mm series connectors make them ideal for use in space-constrained environments.
Interchangeability: They can be interchanged with SMA and 3.5mm connectors, enhancing flexibility of use.
2. Electrical Performance
Impedance Matching: With a characteristic impedance of 50Ω, they facilitate maximizing signal transmission efficiency and reducing reflection loss.
Wide Bandwidth: Supports a wide bandwidth, making them appropriate for data transmission and high-speed communication.
Other 2.92mm Male Female RF Connector
|
Part Number
|
Description
|
|
K-KFD38
|
2.92mm Type K Female RF Coaxial Connector
|
|
K-KFD76G
|
Stainless steel 2.92mm Type K Female RF Coaxial Connector
|
|
K-KFD8
|
2.92mm Type K Female RF Coaxial Connector
|
|
K-JFD9G |
Stainless steel 2.92mm Type K Male RF Coaxial Connector
|
1.
2.
3.
4.
Application:
1. Satellite Communication Systems
In these systems, 2.92mm connectors are used to link critical components such as antennas, amplifiers, and filters, ensuring clear and stable signal transmission.
Given that satellite communications often involve very high frequencies and long-distance transmissions, the high-frequency performance of these connectors is particularly crucial.
2. Wireless Communication Infrastructure
In modern wireless communication towers and base stations, 2.92mm connectors are used to connect various transmission equipment, supporting rapid transmission of mobile data and voice communications.
These connectors help maintain signal quality under high bandwidth demands, reducing maintenance needs and costs.
