Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Gender: | Male |
|---|---|---|---|
| Product Name: | 2.4mm | Keywords: | Millimeter Wave Adapter |
| Item: | Millimeter Wave Adapter | Plating: | Nickel Plated |
| Application: | RF | Surface Plating: | Passivated |
| High Light: | MF540A Cable Coaxial Connector,2.4mm RF Cable Coaxial Connector,Stainless Steel RF Cable Coaxial Connector |
||

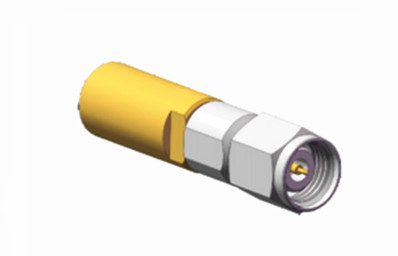

2.4mm Male Stainless Steel RF Cable Coaxial Connector for MF540A Cable
The 2.4 series connector is a high-performance millimeter-wave connector designed for frequencies up to 50GHz, characterized by an air interface and threaded connection. It boasts a small size, lightweight design, high operational frequency, and dependable connectivity. These connectors are extensively utilized in high-frequency microwave measurements and millimeter-wave equipment.

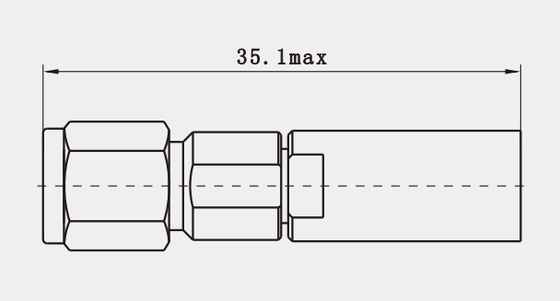

Specification of 2.4mm Male Stainless Steel RF Cable Coaxial Connector for MF540A Cable(mm):
The specific data of the model are based on the data in the product specification sheet
| Impedance | 50 Ω |
| Frequency Range | DC - 50 GHz |
| Voltage Rating | 170VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 500 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤ 1.05+0.005f |
| Contact Resistance | Center Conductor ≤ 2 mΩ |
| Outer Conductor ≤ 3 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated | |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing |
Brass, Gold Plated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
| Insertion loss | <.04 sqrt(f(GHz)) dB |
| Temperature range | -65 ℃~+165 ℃ |
Features:
The 2.4mm cable RF connector adopts an advanced air dielectric design that results in low VSWR and insertion loss. This feature is particularly important for high-frequency transmission because low insertion loss significantly reduces the energy loss during signal transmission, while low VSWR helps improve signal stability and transmission efficiency. Additionally, the connector operates at frequencies up to 50 GHz, meeting the stringent frequency range requirements of modern high-speed communication systems.
The mechanical design of this connector is also ingenious, with an outer conductor diameter of 2.4mm that allows compatibility with 1.85mm series connectors. This design not only enhances flexibility in use but also enables better adaptation and connection between different devices. Thanks to its high precision and durability, the 2.4mm RF connector is widely used in precision measurement fields and millimeter wave communication systems, such as in test and measurement equipment.
Application :
1. High-Frequency Network Analyzers
Device Connectivity: 2.4mm cable RF connectors are widely used in high-frequency network analyzers. These connectors, designed with an air interface, can achieve very high performance and stability, especially in test environments up to 50GHz. They are primarily used to connect test equipment to devices under test, ensuring accuracy and reliability during signal transmission.
2. Test and Measurement Equipment
Calibration Testing: 2.4mm RF connectors are significantly employed in various test and measurement equipment. Especially in calibration kits and metrology applications, their precision air dielectric design allows for highly accurate measurements. They are commonly used in laboratory and production line calibration devices to ensure uniform performance standards across different testing equipment.
Precision Measurement Tools: 2.4mm connectors are also widely used in end launch evaluation tests and board-end testing equipment. These connectors offer high reliability and repeatability, ensuring consistency in every measurement and providing considerable convenience for engineers.
NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
