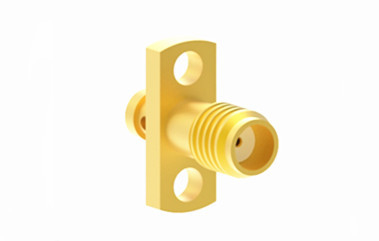

SSMA Female Gold Plated Brass RF Coaxial Connector for CXN3506/MF108A Cable

Large Image : SSMA Female Gold Plated Brass RF Coaxial Connector for CXN3506/MF108A Cable Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	SSMA-KF506-13

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1,000,00 Pieces Per Month

Contact Now

Detailed Product Description

Item:	SMA RF Conector	Plating:	Gold Plated
Gender:	Female	Impedance:	50Ω
Frequency:	DC~18GHz	Lifetime:	500 Cycles
Body:	Brass	Application:	Audio/Vedio/Microwave
Highlight:	SSMA Female RF Coaxial Connector , Gold Plated RF Coaxial Connector , Brass RF Coaxial Connector

SSMA Female Gold Plated Brass RF Coaxial Connector for CXN3506/MF108A Cable

The SSMA Series RF coaxial connector is a miniaturized derivative of the SMA connector, distinguished by its compact size, broad frequency range, and high dependability. It has widespread application in sectors such as aviation, aerospace, and microwave communication, among others.

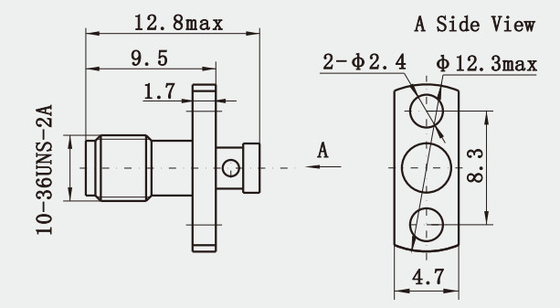

Outline Drawing:

Note:The specific data of the model are based on the data in the product specification sheet.

SSMA Female Gold Plated Brass RF Coaxial Connector for CXN3506/MF108A Cable 0

Specifiacation of SSMA Rf Connectors:

Note:The specific data of the model are based on the data in the product specification sheet.

Electronic and Material Characterials
Impedance		50Ω
Frequency Range		DC~18GHz
Rated Voltage		250 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance		750 VRMS (Maximum sea-level)
VSWR		≤1.3
Insulation Resistance		≥5000MΩ
Center conductor	Male	Brass gold plated
	Female	Beryllium copper gold plated
Shell and other metal parts		Brass gold plated
		Stainless steel passivated
Cable sheath		Brass nickle plated
Insulator		PTFE
Seal ring		Silicon rubber
Mating torque		0.79 -1.13 N.m

Key Features:

1. Good Electrical Performance: They feature low return loss and low insertion loss, ensuring clear signal transmission.

2. Physical Size: SSMA connectors are physically small, facilitating their use in compact designs.

3. Compatibility: SSMA connectors are usually used with 50-ohm coaxial cables and can be compatible with other types of small RF connectors.

Application:

1. Microwave Communications: In microwave links and wireless infrastructure, SSMA connectors are used to connect components sending and receiving signals.

2. Instrumentation and Control Systems: Sensors and actuators used in industrial automation and process control may utilize SSMA connectors.

3. GPS Applications: Antenna connections in Global Positioning System (GPS) devices often use SSMA connectors.

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
