Brass Gold Plated SMA Female RF Flange MountMicro-strip Connectors

Large Image : Brass Gold Plated SMA Female RF Flange MountMicro-strip Connectors Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	SMA-KFD19

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1,000,000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	SMA RF Connector	Plating:	Gold Plated
Impedance:	50Ω	Durability:	500 Cycles
Application:	RF, Satcom /Antenna/Audio	Material:	Brass
Certificate:	ISO-9001-2015	Type:	SMA
Highlight:	IEC 60169-15 SMA Male To SMA Female Adapter , RF SMA Male To SMA Female Adapter , IEC 60169-15 rf male to female adapter

Brass Gold Plated SMA Female RF Connector with Microstrip & Flange Mount

High Performance SMA RF Connectors:

The SMA RF coaxial connector is a compact, high-frequency coaxial connector designed in accordance with MIL-C-39012. It boasts several advantages, including its small size, broad frequency range, superior mechanical and electrical performance, and high reliability. As such, it is the most commonly used RF coaxial connector. Its widespread application can be found in microwave communications, microwave measurement equipment, and other related fields. The line of high-performance connectors developed by our company can support frequencies up to 20GHz.

Our Advantages:

20 years of experience on RF & Microwave Components
Qualified components supplier of China
Rich cooperation experienced with national high tech projects
High performance and commercial grade components for choice
Strict quality (QA Report),ISO9001,ROHS,CE,UL
Factory area 35,000 sq.m with almost 1,000 experience staff
500+ national patents with 15 production lines
Annual output value above US$300 million
50+ series products with 100,000 types
Short delivery and competitive price
Custom-made(ODM) orders are welcomed

Applicable Standard:

MIL-C-39012
IEC 60169-15

Product Display:

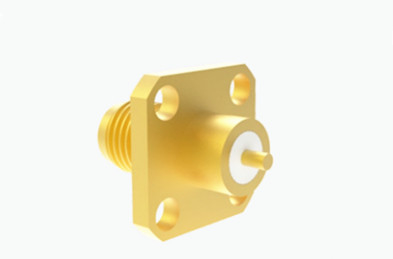

Brass Gold Plated SMA Female RF Flange MountMicro-strip Connectors 0

Electrical Characteristics:

Note:The frequency of the model is based on the data in the product specification sheet.

Impedance	50Ω
Frequency Range	DC~30GHz
Rated Voltage	335VRMS*
Dielectrics Voltage-resistance	1000VRMS*
Insulation Resistance	≥5000MΩ
Center Resistance	Center Conductor	≤3.0mΩ
	Outer Conductor	≤2.0mΩ
VSWR	≤1.3

Material & Mechanical Characteristics:

Center Conductor	Male	Copper Alloy Gold plated
	Female	Beryllium Bronze Gold plated
Elastic Contact		Beryllium bronze Nickel plated
Shell and other Metal Parts		Copper Alloy Gold Plated
		Stainless Passivation
Crimping Sleeve		Copper Alloy Nickel plated
Durability		500 cycles
Sealing Ring		Silicone Rubber
Insulators		PTFE

Applications:

1. Microwave Communication: In wireless communication systems, including base stations, antenna systems, and other related equipment, SMA connectors are used to link different components in the signal path.

2. Measurement and Test Equipment: Precision microwave test equipment and network analyzers often use SMA connectors as signal input and output interfaces to ensure accurate measurements.

3. Satellite Communications: In satellite uplink and downlink systems, SMA connectors are used to connect ground station transmit and receive equipment.

4. Scientific Experiments: In scientific research, especially experiments involving RF signals, SMA connectors are commonly used to build connections between experimental setups and instruments.

Related Products:

SMA Hermetically sealed Microstrip KFD (female flange) Connectors

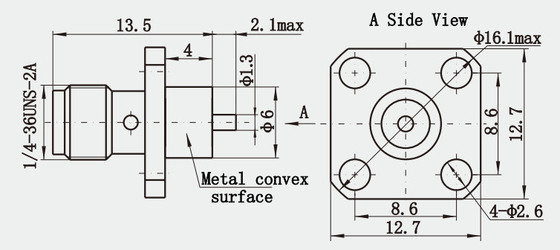

Brass Gold Plated SMA Female RF Flange MountMicro-strip Connectors 1
