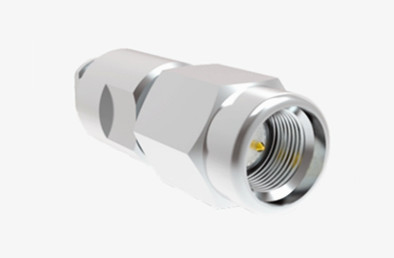

| Product Name: | SSMA RF Conector | Plating: | Stainless Steel |
|---|---|---|---|
| Gender: | Male | Impedance: | 50Ω |
| Frequency: | DC~18GHz | Durability: | 500 Cycles |
| Application: | Communication | ||
| High Light: | Stainless Steel RF Connector,SSMA Male RF Connector,RF Connector For CXN3506/MF108A Cable |
||
The SSMA Series RF coaxial connector is a scaled-down version of the SMAconnector. It is distinguished by its compact size, broad frequency range, and high dependability. This connector is extensively employed in various sectors, including aviation, aerospace, and microwave communication, among others.
Specifiacation of SSMA Rf Connectors:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electronic and Material Characterials | ||
| Impedance | 50Ω | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥2000MΩ | |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated | |
| Shell and other metal parts | Brass gold plated | |
| Stainless steel passivated | ||
| Cable sheath | Brass nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |

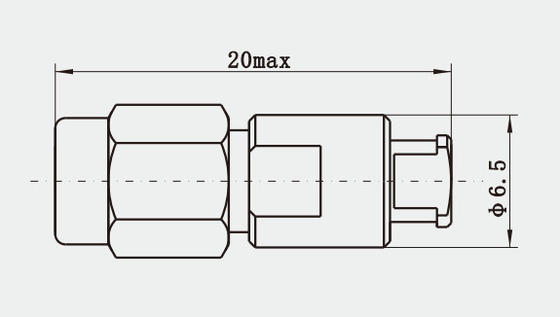

Outline Drawing:(Unit:mm)
Key Features:
1. Miniaturized Design: The SSMA connector is a scaled-down version of the SMA connector, suitable for space-limited environments such as aviation, aerospace, and portable devices.
2. Broad Bandwidth Performance: SSMA connectors can handle a wide range of frequencies, typically covering signals from DC to 18 GHz or even higher.
3. High Reliability: The stainless steel construction provides excellent corrosion resistance and mechanical strength, ensuring the connector's reliability and durability in harsh environments.
Application:
1. Aerospace & Aviation: In aircraft and space exploration, where size and weight are critical factors, SSMA connectors are commonly used for satellite communications, avionics electronics, and navigation systems.
2. Mobile Communications: In mobile devices such as cell phones and tablets, SSMA connectors can be used to connect antennas and RF modules.
3. Test Equipment: In RF test and measurement equipment, SSMA connectors ensure signal integrity and repeatability, often used to connect test instruments with the device under test.
