Gold Plated SSMA Male Stainless Steel RF Connector for CXN3506/MF108A Cable 500 Cycles Durability
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SSMA RF Connector | Gender: | Male |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | ISO-9001-2015 |
| Durability: | 500 Cycles | Application: | Communication |
| Material: | Stainless Steel | Type: | SSMA |
| Highlight: | Gold Plated SSMA RF Connector,Stainless Steel SSMA RF Connector,CXN3506/MF108A Cable SSMA RF Connector |
||

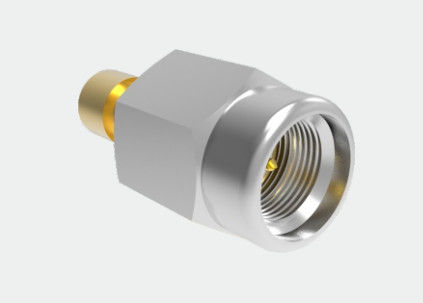

SSMA Male Stainless Steel RF Connector for CXN3506/MF108A Cable
The SSMA Series RF coaxial connector offers a miniaturized alternative to the standard SMA connector, boasting a streamlined design that doesn't compromise on performance. Renowned for its wide frequency band capability and unwavering reliability, this connector has become the go-to solution across diverse industries, including aviation, aerospace, and microwave communications. Its compact size allows for efficient use in space-restricted areas, while maintaining the high-performance standards expected from RF connectors. Trusted for its ruggedness and versatility, the SSMA connector is a critical component in various high-frequency applications where size and reliability are key factors.
Specification of SSMA Rf Connectors:
Note:The frequency of the model are based on the data in the product specification sheet.
| Electronic and Material Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~30GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male | Copper Alloy Gold plated |
| Female | Beryllium Bronze Gold plated | |
| Shell and other metal parts | Copper Alloy Gold Plated | |
| Crimping Sleeve | Copper Alloy Nickel Plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Durability | 500 Cycles | |

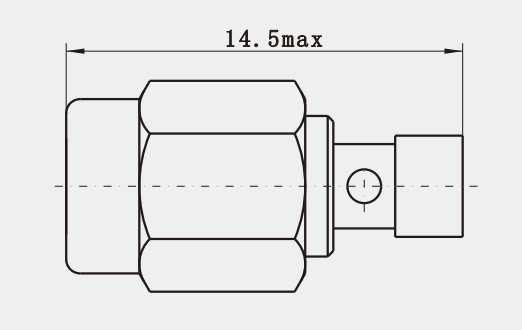

Outline Drawing:(Unit:mm)
Key Features:
1. Versatility: Despite being a scaled-down version of SMA, SSMA connectors are usually compatible with standard SMA components, offering users flexibility in upgrading or replacing equipment.
2. Low Return Loss: The design aims to minimize signal reflections, ensuring efficient transmission and minimal loss.
3. High Power Handling Capacity: Despite their reduced size, SSMA connectors can still manage relatively high power levels, fitting applications requiring significant power transfer.
Applications:
1. Medical Devices: Some high-frequency medical equipment, such as electrosurgical units and RF therapy devices, may use SSMA connectors for signal connectivity.
2. Scientific Research: In scientific experiments, particularly those involving high-frequency signals, SSMA connectors can provide precise measurements and signal fidelity.
3. Radio Frequency Identification (RFID): SSMA connectors might be used in some high-frequency RFID systems to link antennas and other RF components.
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
Interface Dimentions:
Related Products:
SSMA male right-angle RF coaxial connector
| Model No. | Cable |
| SSMA-JW506-1 | CXN3506,MF108A |
NOTE:
We have over 10,000 types of SMA Connectors, if the connector you are using is not found, please contact us with your details.
