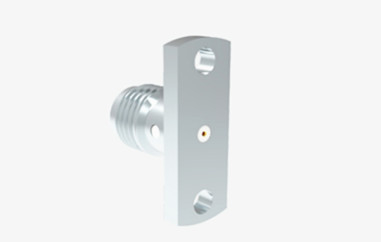

Stainless Steel Nickel Plated SMA Female RF Jack Connector with Microstrip
The SMA RF coaxial connector, a compact and high-frequency type developed in compliance with MIL-C-39012, boasts a small form factor, broad bandwidth, exceptional mechanical and electrical characteristics, and high reliability. It stands as the most ubiquitously used RF coaxial connector, finding extensive application across microwave communication, microwave measurement apparatus, and various other sectors. Our company's range of high-performance connectors within this series is engineered to accommodate frequencies up to 20GHz.
Specifiacation of SMA Rf Connectors:
Note:The specific data of the model are based on the data in the product specification sheet.
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
Material & Mechanical Characteristics:
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass Gold plated |
| Female | Sn-P Bronze Gold plated | |
| Elastic Contact | Beryllium bronze Nickel plated | |
| Shell and other Metal Parts | Brass Nickel plated | |
| Stainless Passivation | ||
| Crimping Sleeve | Brass Nickel plated | |
| Tightening torque of connection | 0.79－1.13N .m | |
| Durability | 500 cycles | |
| Sealing Ring | Silicone Rubber | |
| Insulators | PTFE | |

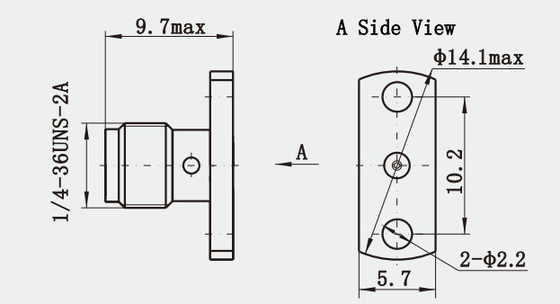

Outline Drawing of SMA RF Coax Connectors:
Key Features:
1. Wide Application: SMA connectors are widely used in microwave communications, radar systems, test equipment, satellite communications, and other fields requiring miniaturization and high-frequency performance.
2. Interface Types: SMA connectors often come with a variety of interface types, including straight through, 90° bends, and gender variations, to accommodate different circuit design needs.
3. Materials and Plating: Besides the stainless steel body, the center conductor and contacts may be plated with gold or other conductive materials to reduce contact resistance and enhance connection reliability.
4. Environmental Adaptability: SMA connectors can adapt to various temperatures and environmental conditions, although the specific temperature range may vary depending on the manufacturer's design and material choices.
Applications:
1. Wireless Communication Base Stations: SMA connectors are used to connect antennas to transmitters and receivers in the construction and maintenance of wireless communication infrastructure.
2. Laboratories and Research: In scientific experiments and RF research, SMA connectors are used to build and test high-frequency circuits.
3. RF Modules and Cards: When manufacturing RF modules, converters, and related boards, SMA connectors can serve as an interface between modules or from cards to antennas.
