Product Details:
Payment & Shipping Terms:
|
| Item: | SMA RF Conector | Plating: | Nickle Plated |
|---|---|---|---|
| Gender: | Male | Impedance: | 50Ω |
| Frequency: | DC~18GHz | Lifetime: | 500 Cycles |
| Body: | Brass | Application: | Audio/vedio/microwave |

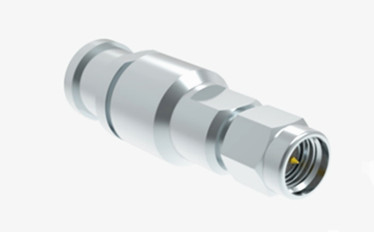

| High Light: | CXN3450/MF740A Cable Straight RF Connector,Stainless Steel Straight RF Connector,SMA Male Straight RF Connector |
||
The SMA RF coaxial connector is a highly compact and high-frequency coaxial connector engineered to meet the specifications outlined in MIL-C-39012. It is celebrated for its versatile features, including its petite dimensions, wide frequency bandwidth, exceptional mechanical and electrical performance, and remarkable durability. This connector is the top selection for RF coaxial connections and is widely incorporated into various domains such as microwave communications and measurement devices. The premium performance series developed by our company is capable of accommodating frequencies up to an impressive 20GHz, reinforcing its status as a connector of choice for demanding high-frequency applications.
Key Features:
1. High Reliability: its high-quality design and manufacturing standards (like MIL-C-39012), this connector is highly reliable and suitable for demanding military and aerospace applications.
2. Mechanical Strength: The SMA connector uses a threaded connection method, providing good mechanical strength and durability to ensure a stable and reliable connection.
3. Compatibility: It is commonly used with coaxial cables and can be integrated with different types of equipment, including test equipment, communication systems, and measurement devices.
4. Environmental Resistance: SMA connectors conform to military standards and are thus capable of operating in a variety of environments, including extreme temperatures, humidity levels, and vibration conditions.
Specifiacation of SMA RF Connectors:
Note:The specific data of the model are based on the data in the product specification sheet.
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |
Application:
1. Satellite and Aerospace Applications: Due to their high reliability and compliance with military standards, SMA connectors have extensive use in satellite communications and the RF systems of spacecraft.
2. Broadcasting and Streaming: In broadcasting and streaming transmission equipment for television and radio, SMA connectors are used to ensure high-quality signal transmission.
3. Radio Frequency Identification (RFID): In some high-frequency RFID systems, SMA connectors can serve as the connecting element between readers and antennas.

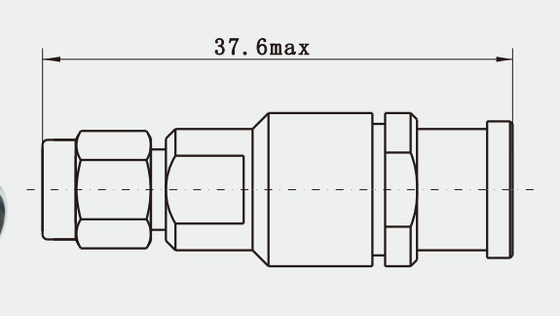

More Detail of SMA RF Coax Connectors:
Product Cataloge:
| RF Adapter |
| SMA RF Connector |
| SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
Related Product
1.SMA Female Bulkhead Mount RF Connectors for PCB
2.SMA 4-Holes Flange Mount Right Angle RF Coax Connectors
| Model No, | L | L1 | L2 | D | Note |
| SMA-KWFD | 29 | 15 | 2.9 | 1.3 | |
| SMA-KWFD8 | 15.1 | 3 | 1 | 1.3 | |
| SMA-KWFD103 | 22.4 | 5.4 | 5.7 | 1.3 | |
| SMA-KFD113 | 34 | 20 | 2.9 | 1.3 | |
| SMA-KWFD118 | 20.1 | 4.8 | 4.2 | 1.3 | |
| SMA-KWFD120 | 16.1 | 4 | 1 | 1.3 | |
| SMA-KWFD122 | 17.4 | 2.3 | 4 | 1.3 |
3.PCB Solder Mount 50Ω Gold Plated 18GHz SMA Right Angle Connectors
| Model No. | L | L1 | Note |
| SMA-KWHD | 13.5 | 3.9 | |
| SMA-KWHD9 | 11.5 | 1.9 | |
| SMA-KWHD11 | 15.6 | 6 |
4.SMA Female PCB Panel Solder Mount RF Connectors
| Model No. | L | D | D1 | Note |
| SMA-KHD9 | 2 | 1.3 | 1.4 | |
| SMA-KHD9A | 1.8 | 0.8 | 0.9 |
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
