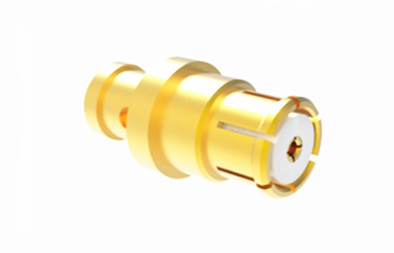

Brass Gold Plated ASMP Female RF Jack Connector for CXN3506/MF108A Cable

Brass Gold Plated ASMP Female RF Jack Connector for CXN3506/MF108A Cable

Features:
1. Similar to SMP: The ASMP connector maintains the same structure and method of use as the standard SMP connector, making it easily adaptable for users already familiar with SMP.
2. Larger Size: The ASMP has an outline dimension that is approximately 22% larger than the SMP, which could be advantageous in specific applications where size is a consideration.
3. Versatile Application: Due to its structural design and power capacity, ASMP is particularly well-suited for board-to-board connections, modular intensive mounting, and applications requiring high power transmission.

Material & Mechanical Characteristics:
Center Conductor:
Male: Sn-P Bronze/Kovar, Gold plated
Female: Beryllium bronze, Gold plated
Elastic Contact:Beryllium bronze Gold plated
Body and other Metal Parts: Brass/Kovar Gold plated

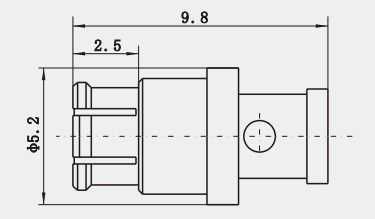

Product Drawing:

Application:

the ASMP RF connector, with its structural advantages, higher power handling capabilities, strong compatibility, and good environmental adaptability, demonstrates its value in the field of RF connections. Whether in the initial material selection or practical application environment adaptability, the ASMP showcases its characteristics as a high-performance RF connector.

Advantages:


√ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.), more than 500 experienced workers with over 10 production line
√ Specializes in manufacturing RF connector more than 20years
√ Have long and rich cooperation experience with national project components supply
√ With our own factory with 35,000㎡
√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery
√ Competitive price
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ Monthly average turnover is 10million
√ Custom-made (ODM) orders welcome here
√ We are committed to providing high-quality products to customers

Factory& Production Line:


NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
