| Gender: | Jack To Jack | Material: | Brass |
|---|---|---|---|
| Plating: | Gold Plated | Impedance: | 50Ω |
| Frequency Range: | DC~50GHz | Other Names: | Mini SMP/SMPM/SSMP |
| Body Style: | Straight | Model: | SSMP-KK85 |
| High Light: | Gold Plated Straight RF Connector,Brass Straight RF Connector,SSMP Female Straight RF Connector |
||

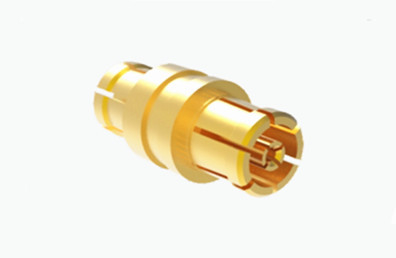

Introduction of Brass SSMP Female to Female Gold Plated RF Connector/Adapter:
SSMP is a compact push-on RF coaxial connector that boasts features such as a small size (in comparison to SMP), lightweight construction, and a broad operating bandwidth. It is designed for use in board-to-board coupling applications within modular dense packaging scenarios. The plug offers two interface options: one with a full detent and the other with an untapped hole.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |

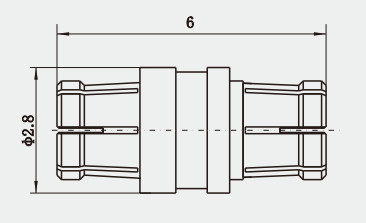

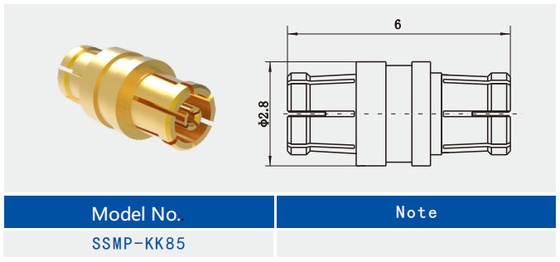

Product Drawing of Brass SSMP Female to Female Gold Plated RF Connector/Adapter::
Features of Brass SSMP Female to Female Gold Plated RF Connector/Adapter::
1. Compact Size: Compared to the standard SMP (SubMiniature version of the PSM), SSMP adapters offer a more compact form factor, making them suitable for space-constrained environments.
2. Lightweight: The lightweight nature of SSMP adapters contributes to the overall reduction in weight of devices, which is particularly important in aerospace and portable equipment.
3. Broad Bandwidth: SSMP adapters can support a wide range of frequencies, making them versatile for various RF applications.
4. Push-On Mechanical Connection: SSMP connectors typically feature a push-on (blind mating) design that allows for quick and repeatable connections and disconnections without the need for tools.
Application of Brass SSMP Female to Female Gold Plated RF Connector/Adapter::
1. Wireless Communication Devices: Such as mobile phones, wireless routers, wireless gateways, and other equipment requiring miniaturized RF connections.
2. Aerospace: Used in aircraft, satellite communications, and spacecraft where size and weight are critical factors.
3. Test Equipment: Utilized in RF test and measurement devices like spectrum analyzers and network analyzers that require high-performance connecting solutions.
4. Medical Devices: In medical imaging equipment, EKG machines, and other medical instruments that require small, precision connections.
5. Computer and Server Hardware: For board-to-board connections within data center servers or any computer hardware requiring high-density interconnects.
Because of their compact size and high-performance characteristics, SSMP adapters are an ideal choice wherever space is limited and reliable RF connections are needed. The design of these adapters allows them to provide outstanding electrical performance under varying environments and requirements.
