Product Details:
Payment & Shipping Terms:
|
| Product Name: | K Type 2.92mm To K RF Adapter | Impedance: | 50Ω |
|---|---|---|---|
| Type: | RF Adaptor | Feature: | Straight |
| Gender: | Female To Female | Durability: | 500 Circles |
| Insulator: | PTFE | Plating: | Nickel Plated |
| Contact Material: | Brass, Sn-P Bronze | ||
| High Light: | Female To Female RF Adapter,K(2.92mm) RF Adapter,Stainless Steel Between Series RF Adapter |
||

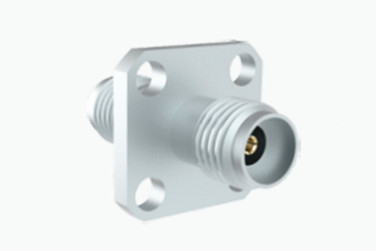

K(2.92mm) Female to Female Stainless Steel RF Adapter
K 2.92mm RF Connector
High-precision 50Ohm coaxial adapters from 2.92 mm (female) to 2.4 mm (male) are designed for general-purpose RF and microwave applications. These high-performance connectors are extensively used in a variety of test and measurement scenarios, ranging from cellular to satellite communications, ensuring the proper matching between equipment and cable interconnects. The connectors are constructed from durable stainless steel and are engineered to endure repeated mating cycles. They feature an air dielectric with a low-loss plastic center conductor support for optimal performance.
As manufacturer, we can customize K SMP connectors and adapters as per your different requirement. Orientations in straight and right angle, with 2-hole or 4-hole flange or threaded bulkhead, hermetic and waterproof types are all available upon request.

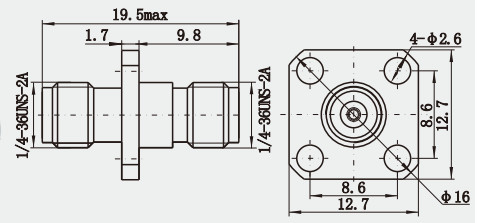

Outline Drawing and Picture(mm)
Note:The specific data of the model are based on the data in the product specification sheet.
Benefits:
1. Wireless Communication Devices: In mobile phones, wireless routers, wireless gateways, and other portable or fixed wireless communication devices, SMP connectors are used for antenna connections.
2. Test and Measurement: SMP connectors are found in RF test and measurement instruments such as network analyzers, spectrum analyzers, and signal generators to ensure precise signal transmission.
3. Medical Devices: SMP connectors are used in precision medical diagnostic and therapeutic equipment like ECG machines, ultrasound devices, and endoscopes to transmit high-frequency signals.
4. Consumer Electronics: In personal media players, digital cameras, tablets, and smartwatches, SMP connectors can be used for connecting headphones, external speakers, or other accessories.
Other SMA Male Female to D4/SMP/MCX Male Female RF Adapter
|
Part Number
|
Description
|
|
K/SSMP-JK2G
|
K Type 2.92mm male to SSMP female rf adapter
|
|
K/SSMP-JK4G
|
K Type 2.92mm male to SSMP female rf adapter
|
|
K/SSMP-JJG
|
K Type 2.92mm male to SSMP male rf adapter
|
|
K/SSMP-KK1 |
K female to SSMP female rf adapter
|
|
K/SSMP-KFKG |
K female to SSMP female flange mount rf adapter
|
|
K/SSMP-KFJ1G
|
K female to SSMP male flange mount rf adapter
|
Application:
1. Satellite Communications: K-type connectors are commonly used in satellite communication equipment due to their ability to ensure stable signal transmission with high reliability and good electrical performance.
2. Test and Measurement Equipment: In the test and measurement industry, K-type connectors are favored for their precise performance, especially in applications requiring high accuracy of signal transmission.
3. Wireless Networks: With the advancement of wireless communication technology, K-type connectors are utilized in various wireless network devices, such as base stations and mobile communication equipment.
Workshop & Exibition
| RF Adapter |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
