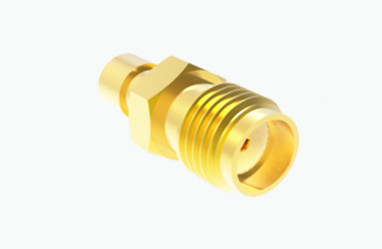

SMA Female Straight RF Connector For SFF-50-1.5-1 Cable Socket

Large Image : SMA Female Straight RF Connector For SFF-50-1.5-1 Cable Socket Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	CE ROHS
Model Number:	SMA-K3-2

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1,000,000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	SMA RF Adapter	Plating:	Gold Plated
Impedance:	50Ω	Frequency:	DC~18GHz
Durability:	500 Cycles	Application:	RF, Satcom /antenna/Audio
Material:	Brass	Certificate:	ROHS, ISO-9001-2015
High Light:	SMA Female Straight RF Connector , Cable Socket Straight RF Connector

SMA Female Straight RF Connector for SFF-50-1.5-1 Cable Socket

High Performance SMA RF Connectors:

SMA RF connectors are offered in various interfaces such as quick disconnect, push-on, or standard types, and can be found in straight, 90-degree angle versions, as well as bulkhead or 4-hole panel mount configurations.
The SMA RF connector is of high quality and allows for quick assembly by simply screwing two connectors together, eliminating the need for soldering or crimping.
SMA electrical connectors are extensively used in applications like microwave technology, antenna systems, and testing equipment due to their reliable performance.
SMA RF connectors are threaded-type coaxial connectors known for their compact size, resistance to vibration, and the ability to handle a wide frequency band up to 18 GHz (our SMA RF connectors can support frequencies up to 20 GHz).

Applicable Standard:

MIL-C-39012
IEC 60169-15

Electrical Characteristics:

Impedance	50Ω
Frequency Range	DC~18GHz
Rated Voltage	335VRMS*
Dielectrics Voltage-resistance	1000VRMS*
Insulation Resistance	≥5000MΩ
Center Resistance	Center Conductor	≤3.0mΩ
	Outer Conductor	≤2.0mΩ
VSWR	≤1.3

Material & Mechanical Characteristics:

Center Conductor	Male	Brass Gold plated
	Female	Sn-P Bronze Gold plated
Elastic Contact		Beryllium bronze Nickel plated
Shell and other Metal Parts		Brass Nickel plated
		Stainless Passivation
Crimping Sleeve		Brass Nickel plated
Tightening torque of connection		0.79－1.13N .m
Durability		500 cycles
Sealing Ring		Silicone Rubber
Insulators		PTFE

SMA Female Straight RF Connector For SFF-50-1.5-1 Cable Socket 0

More Detail of

SMA Female Straight RF Connector for SFF-50-1.5-1 Cable Socket:

(Unit:mm)

SMA Female Straight RF Connector For SFF-50-1.5-1 Cable Socket 1

Applications:

1.Communications Equipment: SMA connectors are extensively used in signal connections for radar, communications, and data transmission equipment because they can handle RF signals up to 18 GHz or even higher frequencies.

2.Test and Measurement Instruments: In microwave communications and measurement equipment, SMA connectors are frequently used due to their compact size and ease of handling. They are suitable for portable test gear and laboratory instruments, capable of reaching high frequencies.

4.Electronic Devices: The subminiature size of SMA connectors makes them ideal for use in small electronic devices, including internal connections in microwave components like filters, attenuators, mixers, and oscillators.
