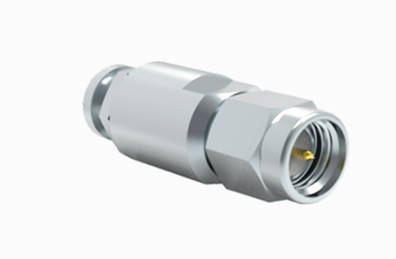

SMA Male Stainless Steel RF Connector For MF147A / MF147B Cable
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item: | SMA RF Connector | Plating: | Passivated |
|---|---|---|---|
| Gender: | Male | Impedance: | 50Ω |
| Frequency: | DC~18GHz | Lifetime: | 500 Cycles |
| Body: | Brass | Application: | Audio/vedio/microwave |
| Highlight: | Stainless Steel SMA RF Connector,MF147A Cable RF Connector |
||
SMA Male Stainless Steel RF Connector for MF147A/MF147B Cable
The SMA RF coaxial connector, a compact high-frequency coaxial connector, is engineered in compliance with MIL-C-39012.
It boasts a small form factor, broad bandwidth capabilities, exceptional mechanical and electrical performance, and high reliability, among other benefits. Recognized as the most commonly utilized RF coaxial connector, it sees widespread application in areas such as microwave communication and microwave measurement apparatus. The superior series of connectors produced by our company supports frequencies up to 20GHz.

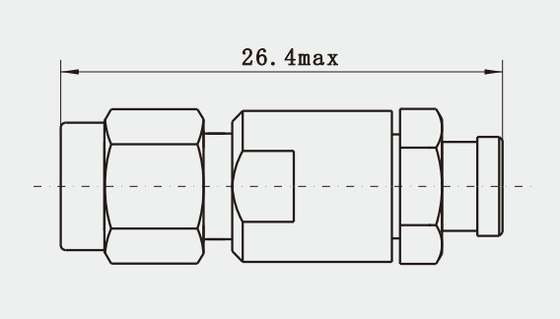

Detailed drawing:
| Model | Cable | Note | |
| SMA-J416G-1 | MF147A, MF147B | Clamp | |
Key Features:
1.Ultra-miniature design: As an ultra-miniature coaxial cable connector, SMA is advantageous in size, making it suitable for applications where space is limited.
2.High-frequency applications: SMA connectors are commonly used in electronic systems operating at frequencies up to 18 GHz or even higher, making them popular for high-frequency RF connections.
3.Hexagonal interface: The external mating interface of the SMA connector is threaded and hexagonal in shape, allowing the use of a wrench for tightening to ensure a secure connection.
Specification of SMA Rf Connectors:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50 Ohm | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 1000 VRMS (Maximum sea-level) | |
| Insulation Resistance | ≥5000MOhm | |
| Contact Resistance | Outer conductor | ≤2 mΩ |
| Center conductor | ≤3 mΩ | |
Application:
In summary, SMA connectors are widely used in the RF and microwave fields due to their compact design, high-frequency signal support, variety of types, and good environmental adaptability.
Product Cataloge:
| RF Adapter |
| SMA RF Connector |
| SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
Interface Dimentions:
Other Products:
SMA male stainless steel RF connector
| Model | Cable | Note | |
| SMA-J416G-2 | MF147A, MF147B | Clamp | |
SMA male RF connector with Spring-loaded Armor
| Model | Cable | Note | |
| SMA-J416G-2 | MF147A, MF147B | Clamp, With Spring-loaded Armor | |
NOTE:
We have over 10,000 types of SMA Connectors, if the connector you are using is not found, please contact us with your details.
