Product Details:
Payment & Shipping Terms:
|
| Item: | SSMA RF Conector | Plating: | Passivated |
|---|---|---|---|
| Gender: | Male | Impedance: | 50Ω |
| Frequency: | DC~18GHz | Lifetime: | 500 Cycles |
| Body: | Straight | Application: | Audio/vedio/microwave |
| High Light: | Straight Male RF Connector,SSMA Male RF Connector,rf-coaxialconnector.com |
||

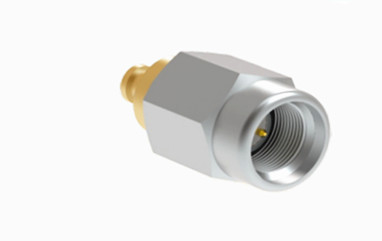

The SSMA series of RF coaxial connectors are miniaturized variants of the SMA connectors, renowned for their compact design, broad frequency bandwidth, and high reliability. These connectors are extensively utilized in various sectors, including aviation, aerospace, and microwave communications, due to their superior performance.
Key Features:
SSMA connectors are characterized by their compact size, making them ideal for applications where space is at a premium. They offer a wide frequency bandwidth, allowing them to handle a broad range of frequencies with minimal signal loss. In addition to their small form factor and broad bandwidth, SSMA connectors are also known for their high reliability, ensuring stable and consistent connections even in demanding environments such as aviation and aerospace. These connectors are designed to withstand the rigors of microwave communications and other high-frequency applications, making them a popular choice in various industries.
Specifiacation of SSMA Rf Connectors:
| Electronic and Material Characterials | ||
| Impedance | 50Ω | |
| Frequency Range | DC~30GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated | |
| Shell and other metal parts | Brass gold plated | |
| Stainless steel passivated | ||
| Cable sheath | Brass nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |
Product Cataloge:
| RF Adapter |
| SMA RF Connector |
| SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
Application:
Wireless Communication Devices: The broad bandwidth of SSMA connectors makes them suitable for internal connections in smartphones, wireless routers, and other wireless communication equipment.
Test Equipment: In test and measurement devices like network analyzers and signal generators, SSMA connectors are favored for their precision and reliability.
Aerospace: The miniaturization of SSMA connectors is advantageous in the aerospace industry, where space is at a premium, such as in aircraft wiring and satellite communications.
Medical Devices: Precision medical equipment, including certain types of endoscopes and minimally invasive surgical tools, may utilize SSMA connectors due to their small form factor and high performance.
Military and Defense: Military communications and electronic warfare equipment often employ SSMA connectors for stable signal transmission and high reliability.
Automotive Industry: With the advent of automotive electronics, SSMA connectors are increasingly used in car navigation systems, radios, and sensor connections.
Internet of Things (IoT) Devices: In IoT devices, SSMA connectors can link various sensors and modules, facilitating data transmission and device interconnectivity.

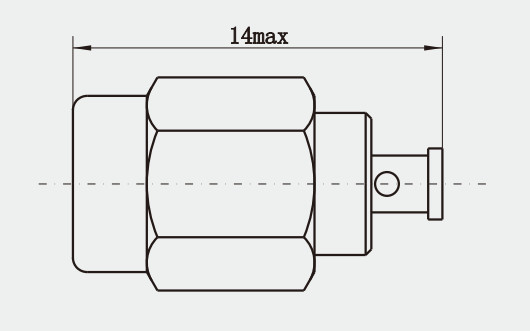

Interface Dimentions:
Related Product
1.Mini SMA Microstrip series 2 Holes Flange Connectors
2.SMA Female RF Connectors for cable RG178
2.Mini SMA PCB Panel Mount 4 Holes Flange Connectors
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
