| Product Name: | MCX RF Conector | Plating: | Gold Plated |
|---|---|---|---|
| Impedance: | 50Ω | Durability: | 500 Cycles |
| Contact Material: | Brass, BeCu | Material: | Bass |
| Design Standard:: | IEC 60169-17 | Type: | Straight |
| High Light: | MCX Female Bulkhead RF Connector,RF Coaxial Connector With Microstrip,Straight Gold Plated RF Connector |
||

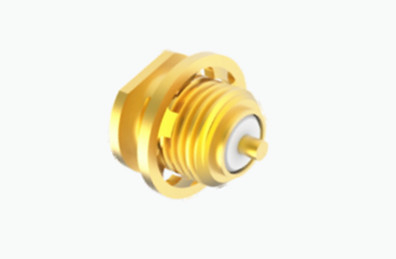

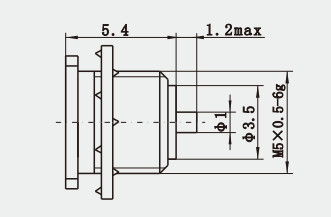

Gold Plated MCX Female Bulkhead RF Connector with Microstrip
The MCX series of RF coaxial connectors are engineered for applications with constraints on weight and space, capable of functioning at frequencies up to 6GHz. They employ a plug-in interface design, sharing a similar interface structure to the TMA, yet offering reduced dimensions, more dependable contact, and simpler connectivity. These connectors are well-suited to meet the demands of digital communication density and miniaturization.
Specification:
| Electrical Characteristics | ||
| Impedance | 50Ohm | |
| Frequency Range | DC~6GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) | |
| Insulation Resistance | ≥2000MOhm | |
| Contact Resistance | Outer conductor | ≤2.5mOhm |
| Center conductor | ≤5.0mOhm | |
| VSMR | ≤1.3 | |
| Material & Mechanical Characteristics | |||
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated | |
| Resilience Contact | Beryllium bronze | Gold plated | |
| Shell / Housing | Brass | Gold plated | |
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |
Environmental Specification:
| Operating Temperature | -30 to +70 Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
Compact Design: The MCX connector is smaller in diameter compared to other connectors like the SMB, with a 3.6mm (0.14-inch) diameter, making it suitable for applications where size and weight are at a premium.
High-Frequency Performance: It is capable of operating at frequencies up to 6GHz, meeting the demands of high-speed digital communication.
Convenient Mating: The plug-in interface design allows for easy connection and disconnection.
Cost-Effectiveness: The manufacturing process focuses on cost control, facilitating mass production and widespread use.
Integrated Signal Transmission: The MCX supports the transmission of multiple signals, enhancing system integration and performance.
Modular Assembly: The MCX connector supports modular assembly, allowing flexible configuration based on different application requirements.
Surface Mount Contact Termination: This termination method helps improve the reliability and convenience of the connector.
Versatility: The MCX connector is suitable for various applications such as GPS tracking, positioning, and navigation devices.
Application:
MCX connectors hold their place in the realm of RF connectors due to their compactness, high performance, ease of use, and cost-effectiveness. They are particularly suited for precision electronic equipment where size and weight are critical, such as in aerospace, satellite communications, and portable electronic devices. Additionally, the design of MCX connectors aligns with the trend of modern electronic equipment towards higher density and miniaturization.
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
