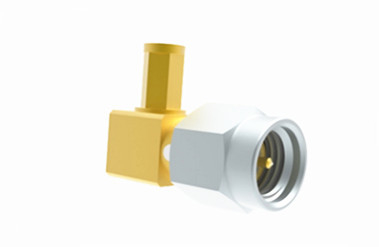

SMA Male RF Stainless Steel Right Angle Connector
The SMA type is a variety of RF coaxial connector that is extensively utilized, featuring a compact threaded coupling. It has a characteristic impedance of 50Ohms. These connectors are known for their broad frequency bandwidth, superior performance, and high reliability. They are employed to join RF cables or microstrip lines in the RF circuitry of WLAN systems, control programs, microwave devices, and digital communication systems. By utilizing semi-rigid or semi-flex cables, the operational frequency can reach up to 18 GHz.
Specifiacation:
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |

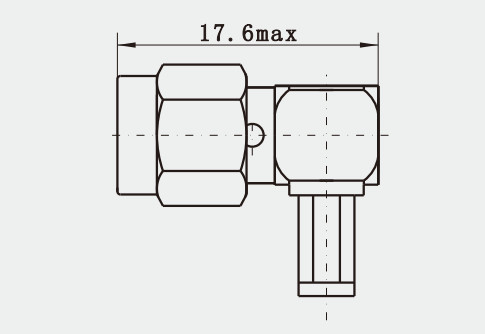

Detailed Drawing
Application:
Microwave Communication: Due to their broad bandwidth characteristics, SMA connectors are used in microwave communication systems to connect cables between antennas and transceivers, ensuring stable signal transmission.
RF Test Equipment: In RF test and measurement equipment, SMA connectors are used to connect testing instruments to devices under test for precise signal analysis.
Radar Systems: In radar systems, SMA connectors are used to link transmitting and receiving modules, aiding in the transmission of radar signals.
Satellite Communication: At satellite communication ground stations, SMA connectors are employed to connect antennas and other related equipment for efficient signal transmission.
