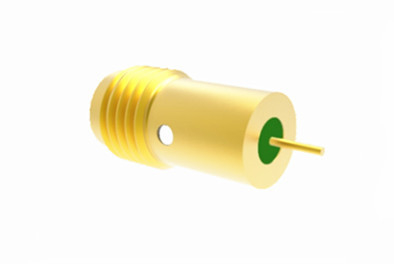

| Plating: | Gold Plated/Passivation | Frequency: | DC~18GHz |
|---|---|---|---|
| Gender: | Female | Lifetime: | 500 Cycles |
| Application: | Audio/vedio/microwave | Working Voltage: | 335V R.m.s At Sea Level |
| Type: | SMA RF Connectors | Body Style: | Straight |
| High Light: | Straight Female SMA Connector,SMA Hermetically Sealed Bulkhead Female,SMA RF Connector With Microstrip |
||
SMA series is a miniature RF coaxial connector that has been developed and produced in accordance with Mil-C-39012. It boasts a small volume, excellent bandwidth, and superior electrical performance. SMA is the most commonly used RF coaxial connector in microwave communication and microwave measurement equipment. The high-performance connectors developed by our company can reach up to 20GHz.
Specification:
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | Connect with solf cable DC~12.4GHz | |
| Connect with semi-rigid cable DC~18GHz | ||
| Rated Voltage | 335VRMS* | |
| Dielectrics Voltage-resistance | 1000VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ | |
| VSWR | ≤1.3 | |
Features:
Broad Bandwidth: SMA connectors support frequencies up to 18GHz, making them extremely useful in high-frequency applications.
Superior Performance: They provide excellent electrical performance, which is crucial for maintaining signal integrity.
High Reliability: The design of SMA connectors ensures their reliability over extended periods of use, which is vital for the stable operation of systems.
Long Lifespan: Their durability ensures that they maintain performance even with frequent mating and unmating.
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass Gold plated |
| Female | Sn-P Bronze Gold plated | |
| Elastic Contact | Beryllium bronze Nickel plated | |
| Shell and other Metal Parts | Brass Nickel plated | |
| Stainless Passivation | ||
| Crimping Sleeve | Brass Nickel plated | |
| Tightening torque of connection | 0.79－1.13N .m | |
| Durability | 500 cycles | |
| Sealing Ring | Silicone Rubber | |
| Insulators | PTFE | |

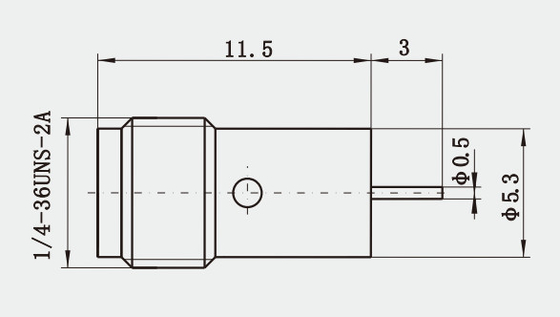

Outline Drawings of SMA RF Coax Connectors:
(mm)
Advantages of SMA RF Connecctors:
SMA connectors are a subminiature type of RF coaxial connector widely used in microwave applications due to their design which accommodates frequencies up to 18GHz. They are utilized across various sectors including telecommunications, networking, wireless communications, and in testing and measurement equipment.
Application:
With their compact design, broad bandwidth, and superior electrical performance, SMA connectors are an indispensable component in the field of RF and microwave technology. They are essential for achieving high-quality connections in communication applications.
Packaging Details:
* Standard Export Carton
* According to clients' requirements
NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
